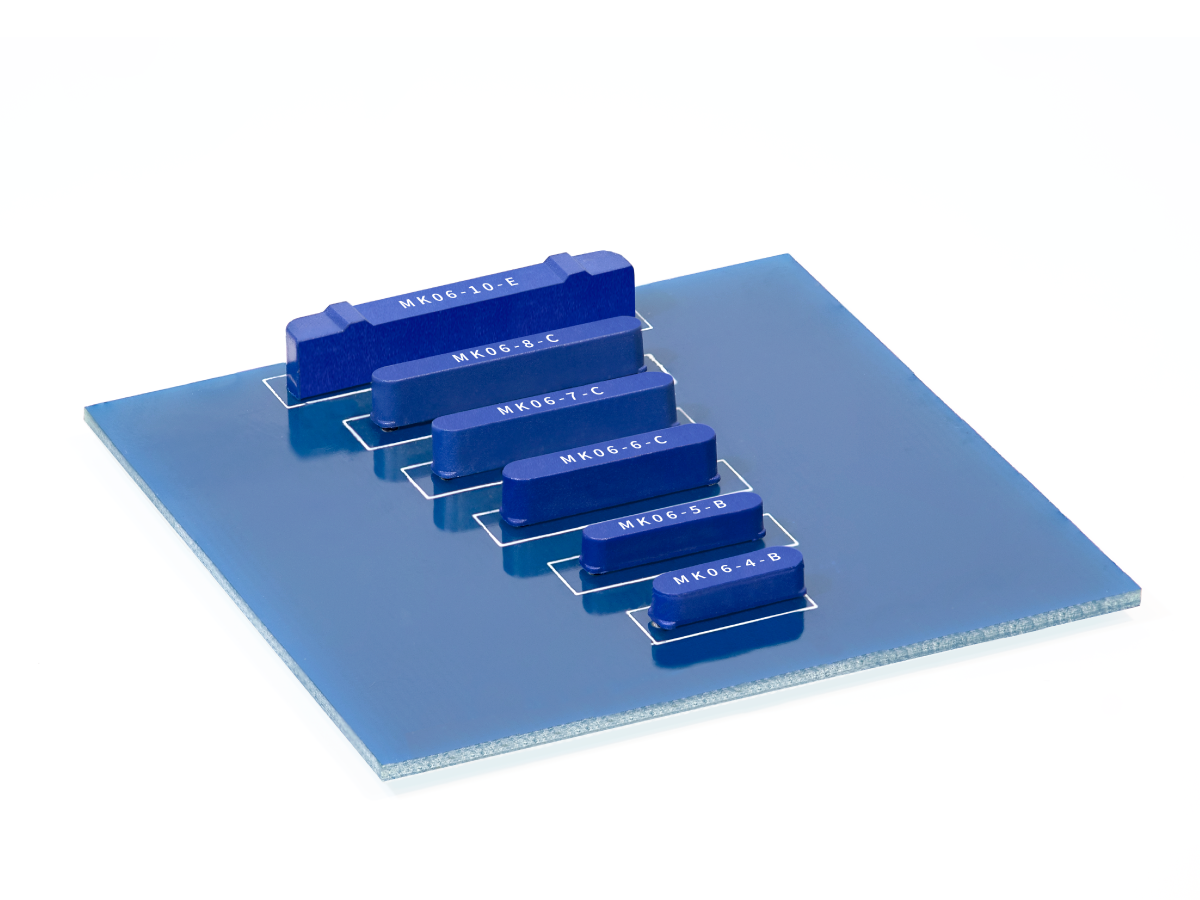

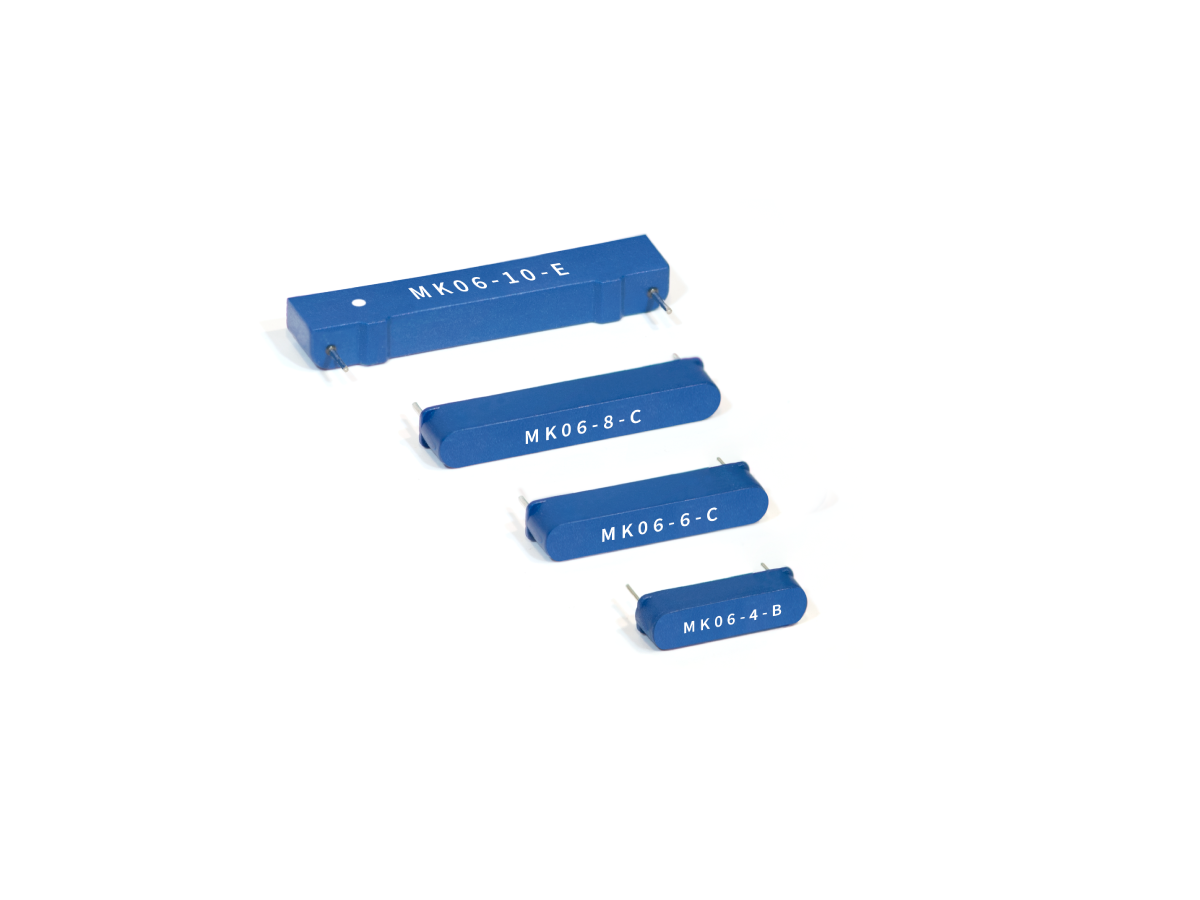

MK06 Series Reed Switch
The MK06 Series is a compact, through-hole mount (THT) reed sensor designed for direct PCB integration in applications requiring precise magnetic sensing. With a variety of case sizes, magnetic sensitivities, and switch configurations, it’s ideal for position, motion, proximity, and on/off control in industrial, security, and appliance systems.
The MK06 Series offers compact, high-performance magnetic sensing in a PCB-friendly format, making it a trusted solution for OEMs and engineers designing in space-constrained or embedded environments.
- Miniature THT design for direct PCB mounting

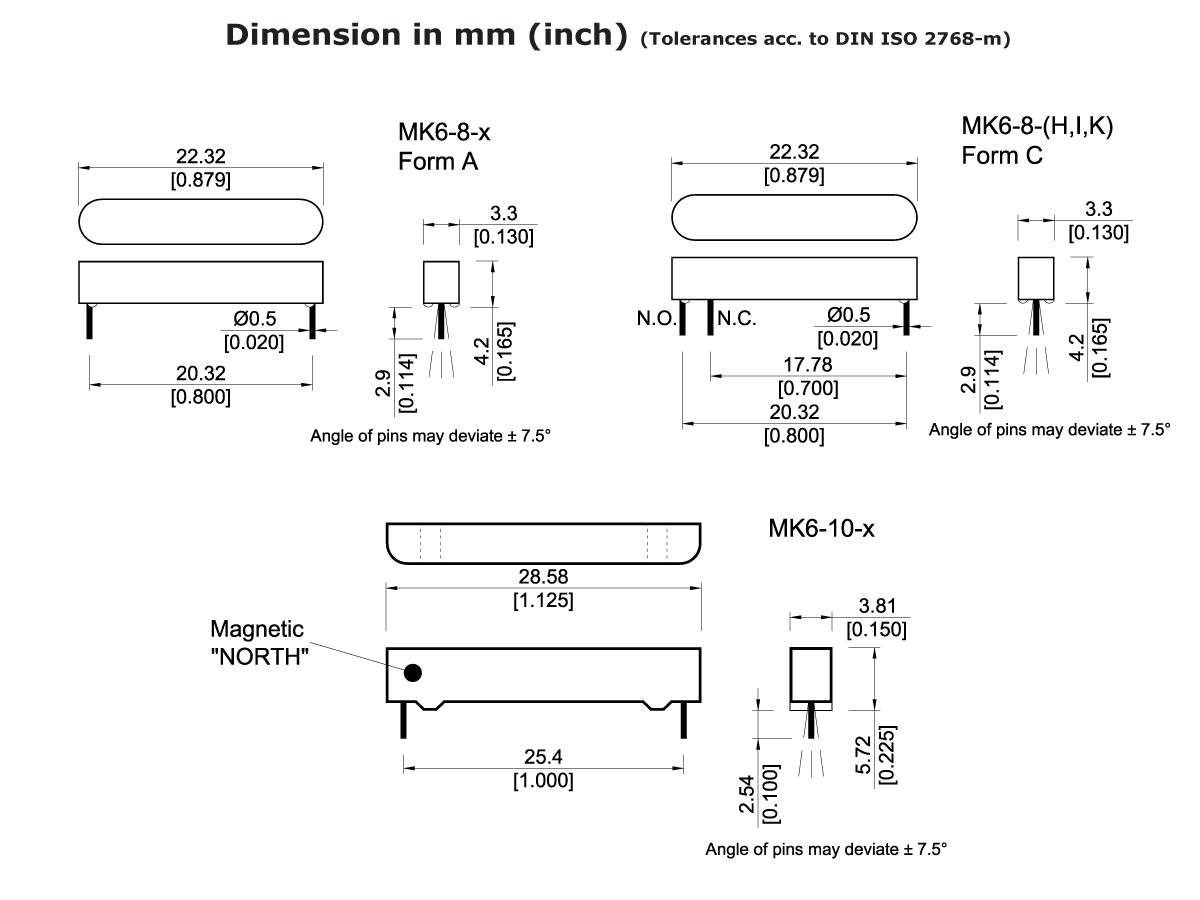

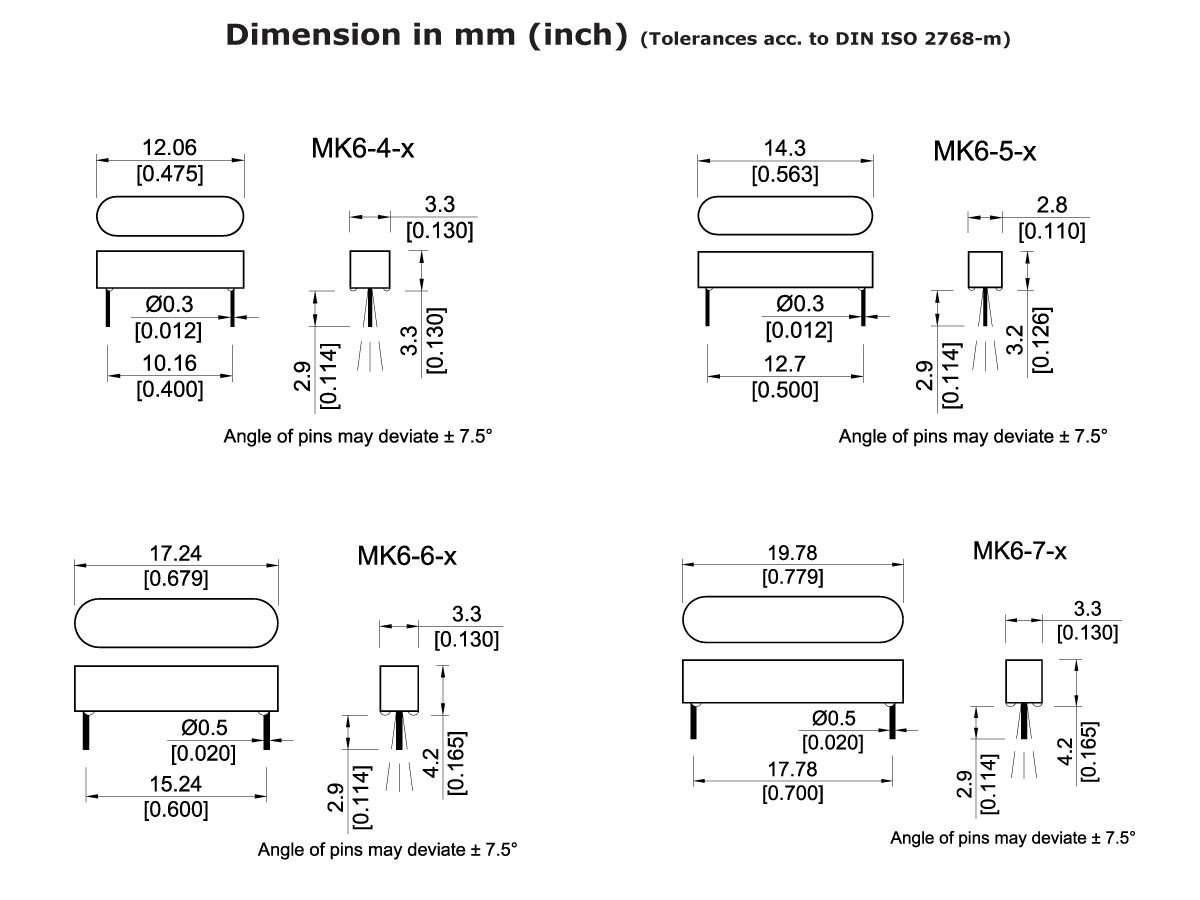

- Multiple case sizes and magnetic sensitivity options
- UL-approved configurations
- Customizable switch type, pin spacing, and termination
- High-voltage and latching options available
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/170-200VDC/0.25-0.5A |
- Industrial automation
- Security systems
- Telecommunications equipment
- White goods and appliances
- Medical devices
- Position and proximity sensing
