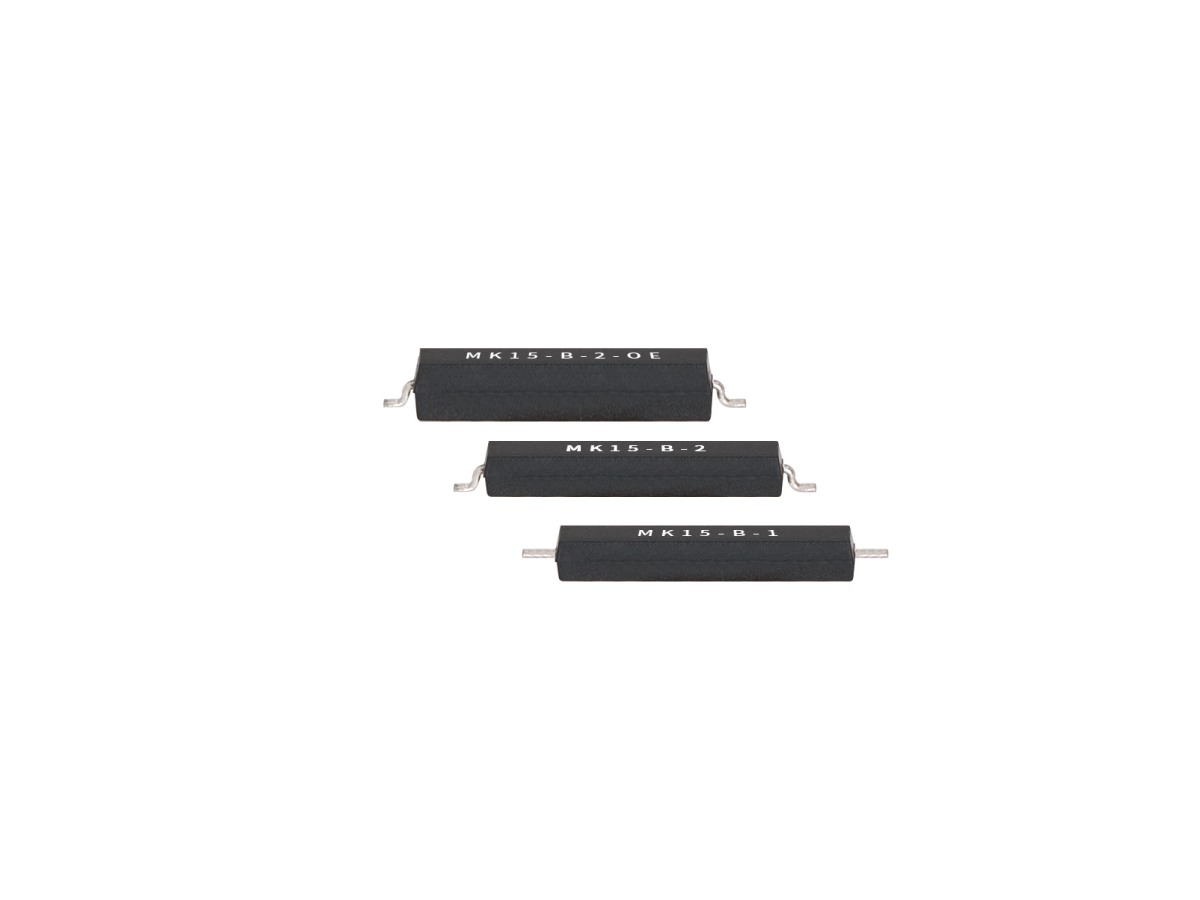

MK15 Series Surface-mount Reed Switch
The MK15 Series is a miniature surface-mount (SMD) reed sensor designed for on/off control, position, motion, and proximity detection in compact electronic assemblies. Available in axial, gull-wing, and long gull-wing lead styles, it supports automated production with tape & reel packaging per IEC 286/Part 3. Ideal for medical, telecom, security, and white goods applications.
The MK15 Series delivers precise magnetic sensing in a versatile SMD format, making it a trusted solution for OEMs and engineers designing in automated, space-limited, or low-power environments.
- Miniature molded body for space-constrained designs

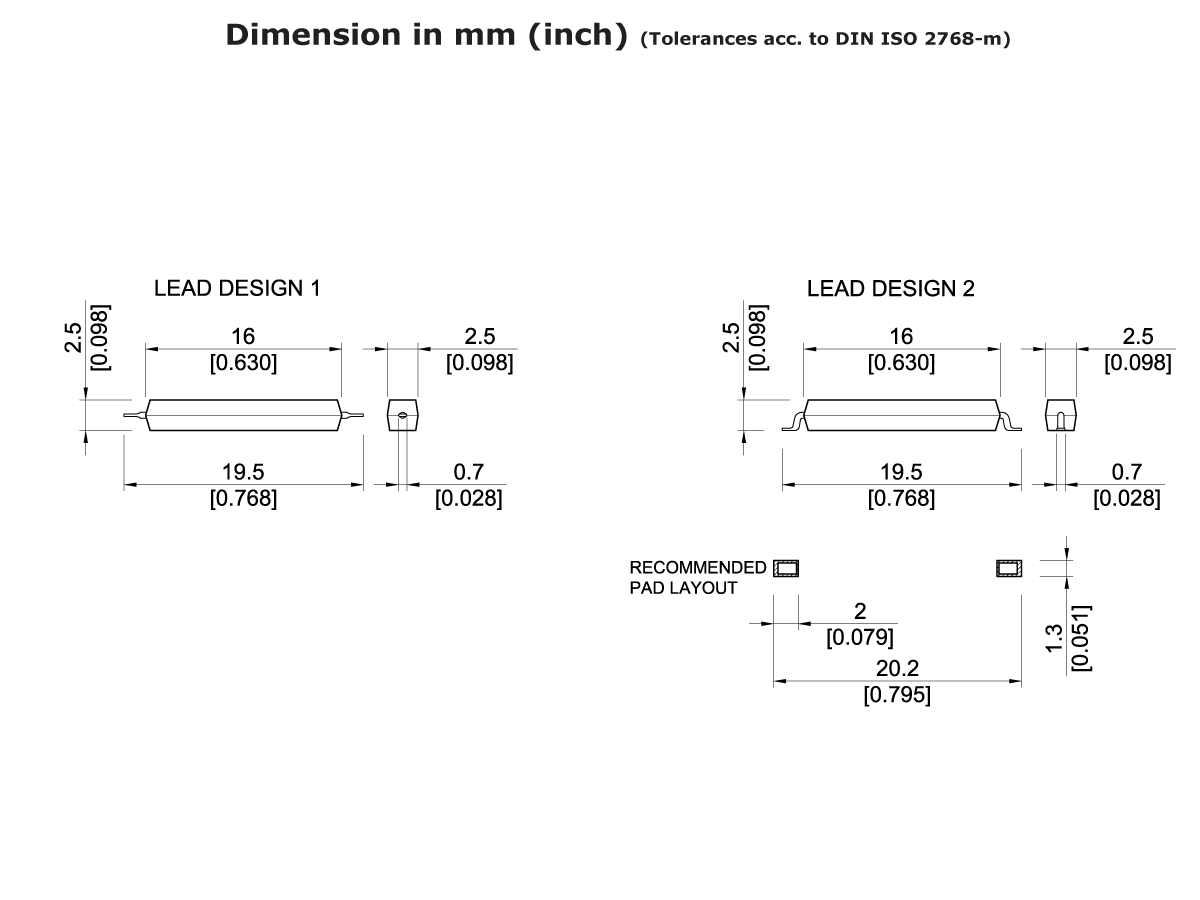

- Surface-mount configuration with multiple lead styles
- Tape & reel packaging for automated assembly
- UL-approved configurations
- Excellent for low-power switching applications
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.) |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/200VDC/0.5A |
- Portable medical devices
- Telecommunications equipment
- Security systems
- White goods and appliances
- Compact industrial electronics
- Position and proximity sensing
