MK23-35 Series Surface-mount Reed Switch

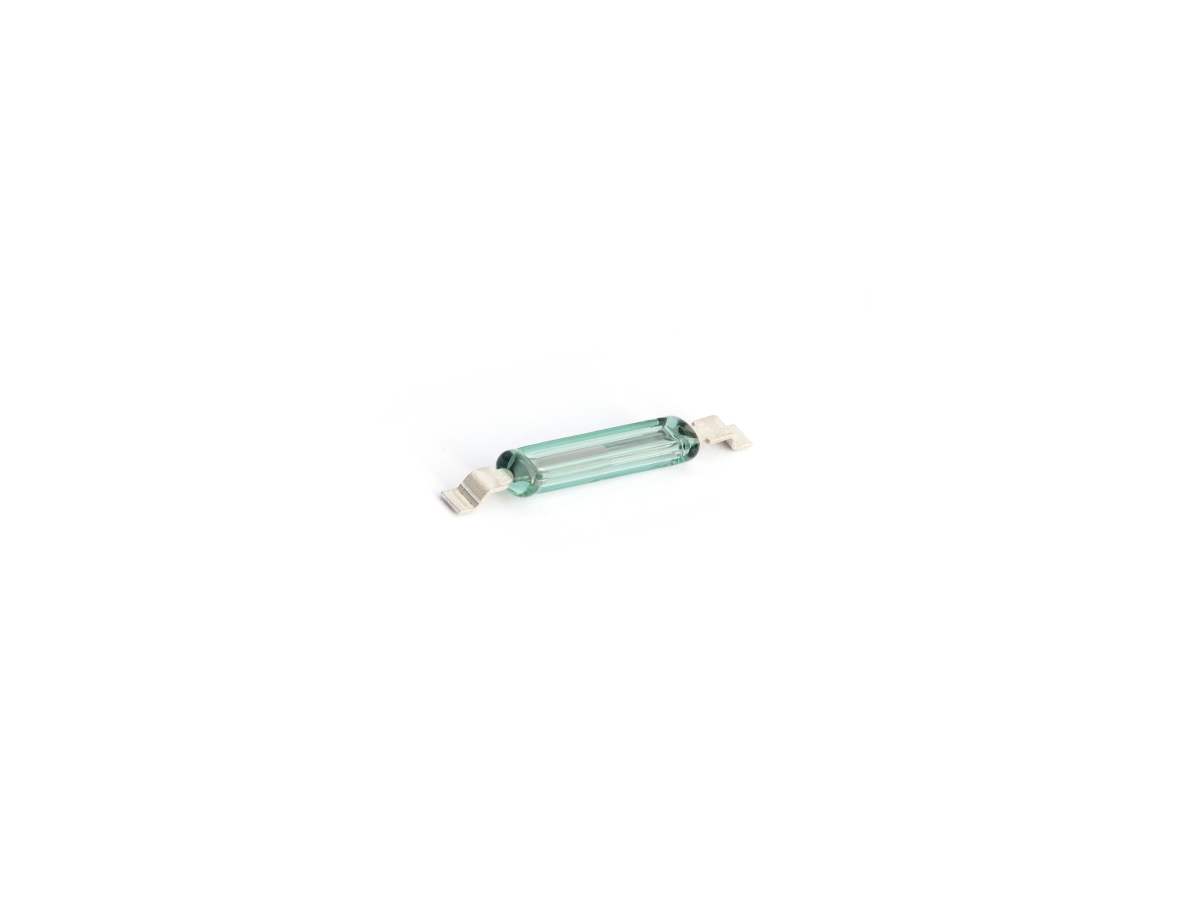

The MK23-35 Series is a bare glass surface-mount (SMD) reed sensor designed for compact, high-voltage switching in automated electronic assemblies. With a 10.5mm glass body and 2.1mm diameter, it offers a cost-effective alternative to over-molded sensors, ideal for on/off control, position, motion, and proximity detection in space-constrained environments.
The MK23-35 Series delivers high-voltage performance in an ultraminiature footprint, making it a trusted solution for OEMs and engineers designing in automated, space-limited, or high-reliability environments.
- Bare glass SMD design for compact integration
- Rated for high-voltage switching up to 200VDC
- Tape & reel packaging per IEC 286/Part 3 for automated pick-and-place

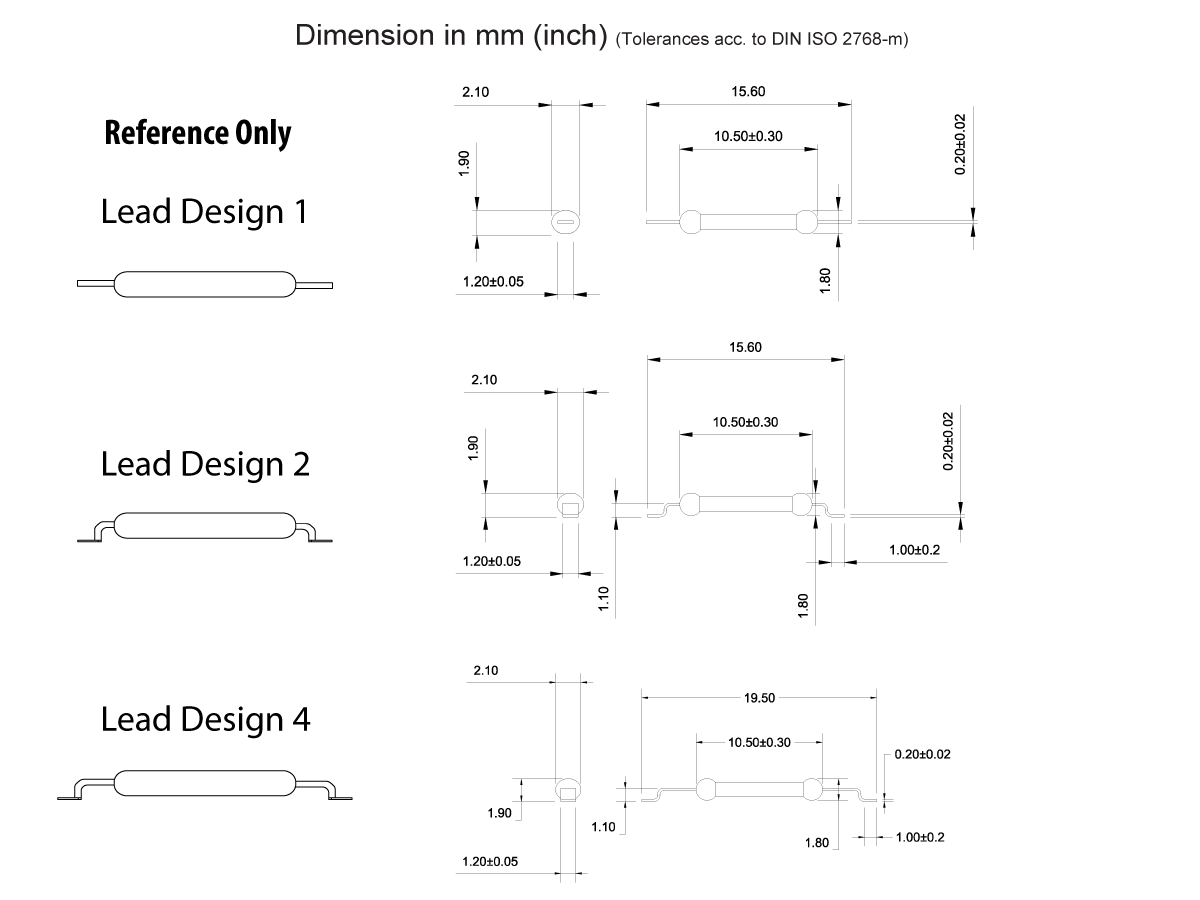

- Multiple lead styles: axial, gull-wing, long gull-wing
- Economic alternative to over-molded sensors
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-30 AT |
| Rated Power Max. | 20W/200VDC/1A |
| Lead Design | 1, 2 |
- Automotive electronics
- Military and aerospace systems
- Telecommunications equipment
- Safety and security devices
- Test and measurement (ATE)
- White goods and consumer appliances
