ORD221 Series Reed Switch

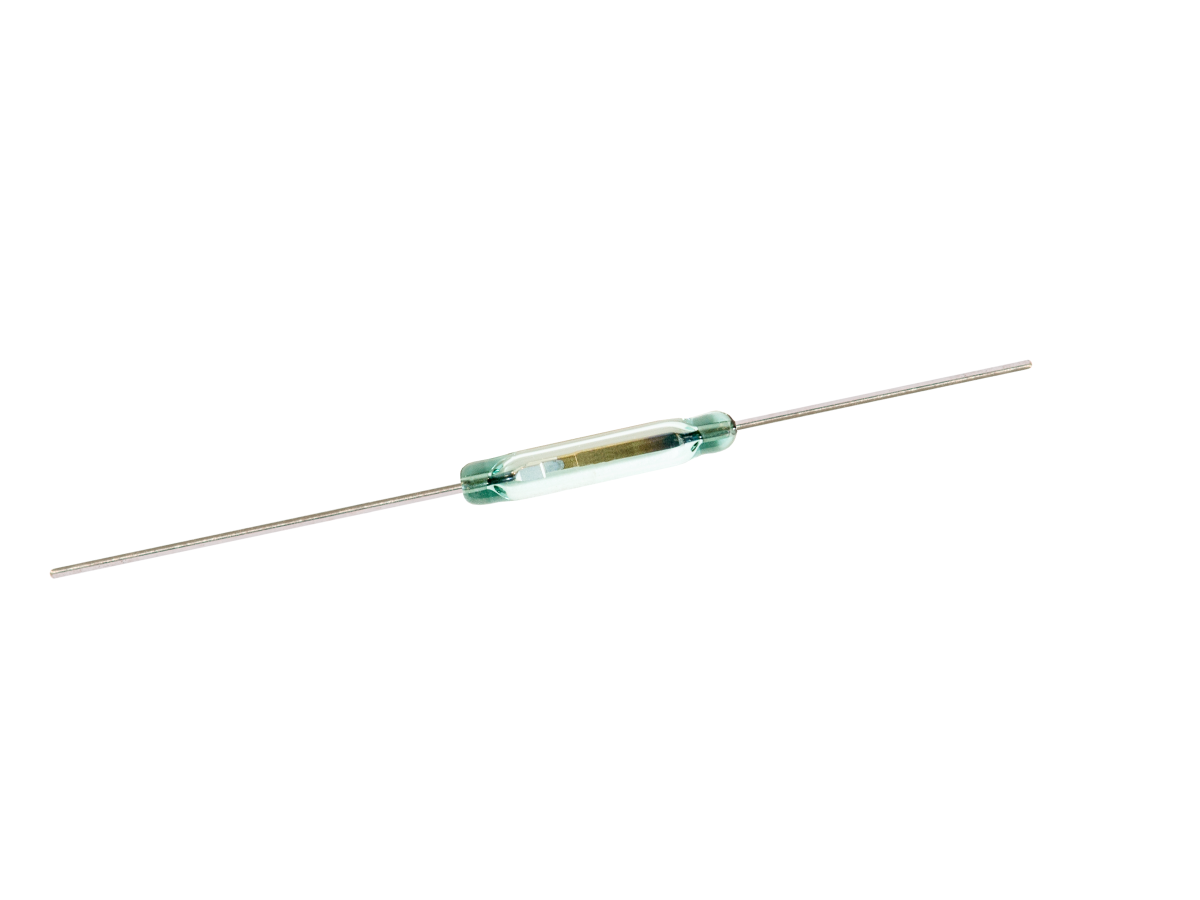

The ORD221 Series is a miniature, normally open reed switch designed for medium-load switching applications. With a glass body length of 13.0 mm and diameter of 2.3 mm, it offers a compact footprint suitable for space-constrained designs while maintaining reliable performance.

Rated for up to 10 W, 100 VDC, and 0.3 A, the ORD221 is hermetically sealed in inert gas to ensure long-term contact stability. Its offset lead design supports flexible mounting options, and its pull-in range of 10–30 AT allows for adaptable magnetic sensitivity across various applications.

This series is ideal for general-purpose switching in consumer electronics, automotive systems, and industrial devices where compact size and dependable operation are essential.

• SPST-NO (Form A) contact configuration for simple magnetic switching

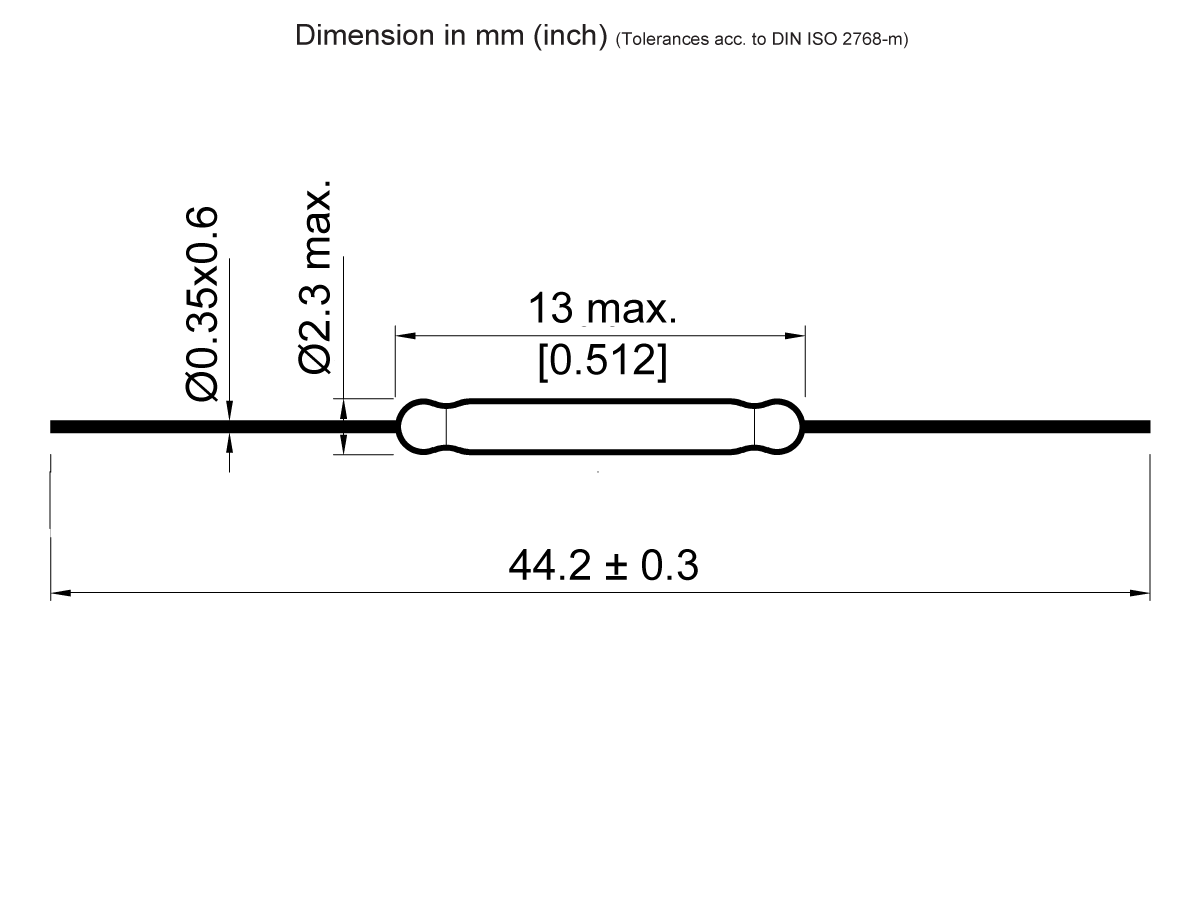

• Compact glass body (13 mm length, 2.3 mm diameter) for tight design spaces
• Hermetically sealed for enhanced durability and environmental resistance
• Offset lead design for flexible mounting and PCB layout
• Rated for 10 W / 100 VDC / 0.3 A for medium-load applications
• Wide pull-in range (10–30 AT) for magnetic sensitivity tuning
• Supports automated assembly with tape-and-reel packaging options
• Available in multiple sensitivity ranges for design flexibility

• Consumer Electronics: Power switching, sensor triggering, compact control circuits
• Automotive Systems: Position sensing, fluid level detection, switch feedback
• Industrial Equipment: Relay triggering, proximity sensing, control logic
• Home Appliances: Door sensors, water level detection, safety interlocks
• Telecommunications: Signal routing, line switching
• Measurement Devices: Sensor activation, data acquisition systems
