ORD312 Series Reed Switch

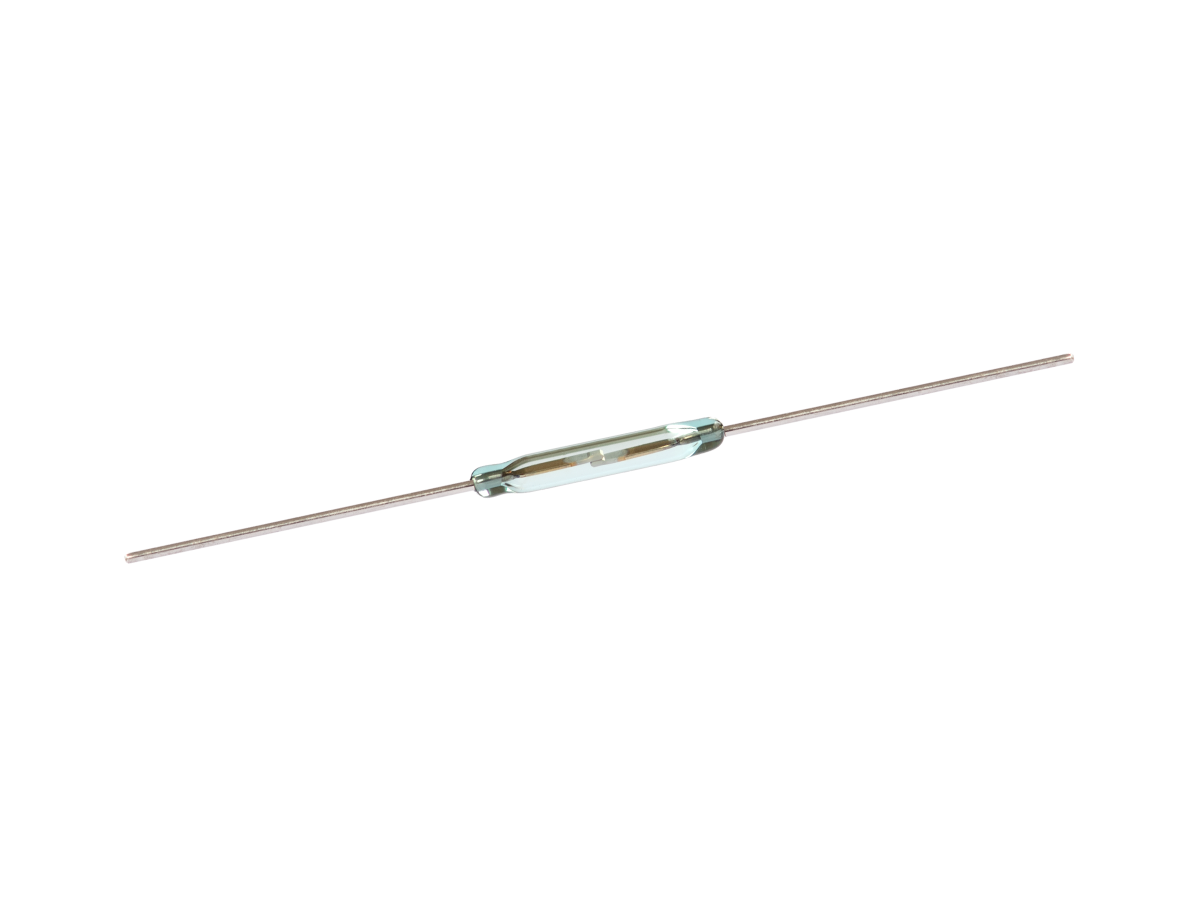

The ORD312 Series is a high-power, long-life reed switch engineered for precision switching in demanding environments. With a glass body length of 12.0 mm and diameter of 2.0 mm, this SPST-NO (Form A) switch supports switching voltages up to 200 VDC, currents up to 0.5 A, and a rated power of 30 VA.
Featuring iridium contacts for enhanced durability, the ORD312 offers ultra-low contact resistance (<100 mΩ) and can reliably switch signals as low as 10 nanovolts and 1 femtoamp without loss. Its hermetically sealed design ensures consistent performance in harsh conditions, including exposure to salt spray, humidity, chemicals, and dust.
- Iridium contact material for extended switch life and high reliability
- Can switch ultra-low signals without degradation—ideal for sensitive electronics
- Hermetically sealed in inert gas for protection against environmental contaminants
- Shock and vibration resistant, suitable for rugged industrial use
- Consumes no power in the open state, supporting energy-efficient designs
- High insulation resistance and low electrostatic capacitance (<0.3 pF)

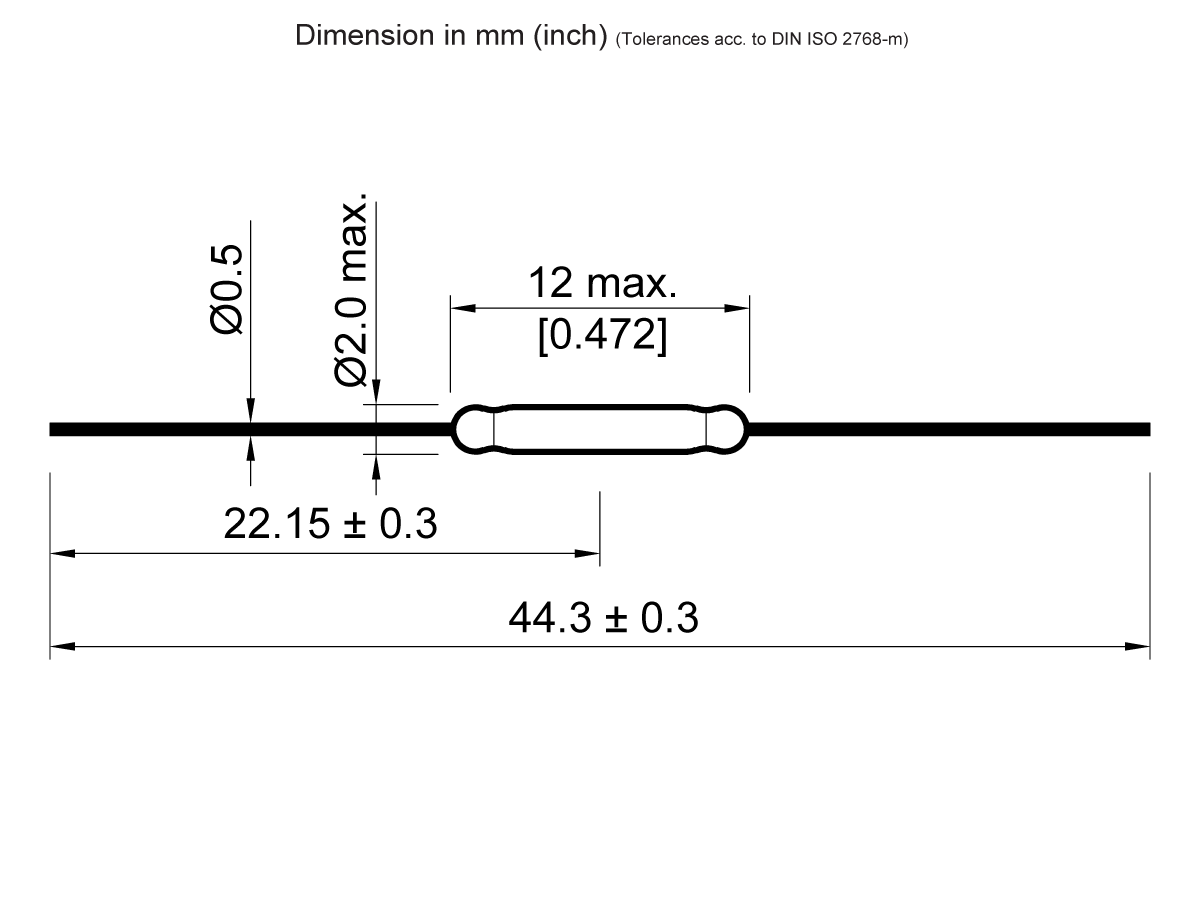

| Overall Length mm (inches) | 44.3 (1.744) |
| Glass Length Max. mm (inches) | 12.0 (0.472) |
| Glass Dia. Max. mm (inches) | 2.00 (0.078) |
| Lead Dia. mm (inches) | 0.5 (0.019) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 10-40 AT |
| Rated Power Max. | 30W/200VDC/0.5 Amp DC |
- Industrial automation and control systems
- Test and measurement equipment (ATE)
- Automotive sensors and electronics
- Security and alarm systems
- Medical devices requiring isolated switching
- Communication and signal routing systems
