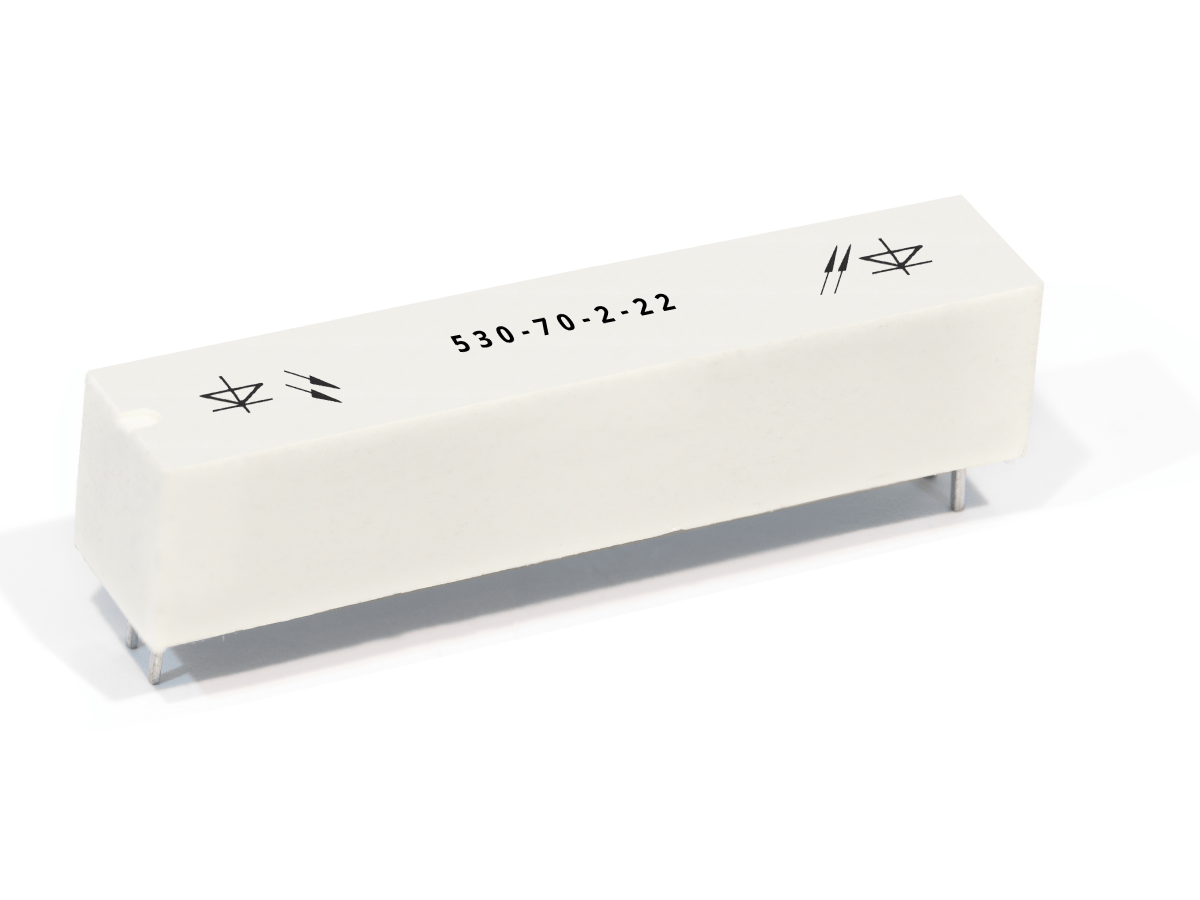

530-70 Series Optocouplers

The 530-70 Series Optocouplers are high-isolation, solid-state devices designed for galvanic separation in intrinsically safe and high-voltage circuits. With a minimum isolation voltage of 22,000 VDC, insulation resistance up to 10¹² Ω, and a creepage/air path distance of 39 mm, these optocouplers meet the highest safety standards for hazardous environments.

Supporting both analog and digital signal transmission, the 530-70 Series features fast switching times (5.5 µs on / 4.2 µs off), minimal coupling capacitance, and a photo-diode output for short cycle times. The non-mechanical design ensures long operational life and immunity to magnetic fields, making them ideal for applications where reliability and safety are critical.

These optocouplers are well-suited for use in flammable gas zones, medical systems, mining operations, and industrial automation requiring robust isolation and signal integrity.

• Galvanic isolation up to 22,000 VDC between input and output
• High insulation resistance up to 10¹² Ω
• Supports analog and digital signal transmission
• Fast switching times (5.5 µs on / 4.2 µs off)
• Minimal coupling capacitance for clean signal separation
• Signal inversion capability for flexible control logic
• Non-mechanical switching for long operational life
• Immune to magnetic fields and environmental interference
• Extended creepage and air path distance of 39 mm for enhanced safety
• Cut-off frequency up to 100 kHz for responsive signal handling

• Oil & Gas: Signal isolation in control systems for flammable environments
• Mining Operations: Safe switching in explosive atmospheres
• Medical Equipment: ESD-resistant signal separation in sensitive devices
• Test & Measurement: High-speed signal transfer in precision instruments
• Automation Systems: Galvanic isolation in industrial control circuits
• Energy & Power Systems: Isolation in renewable and conventional energy systems
• Process Control: Safe signal routing in hazardous production environments
