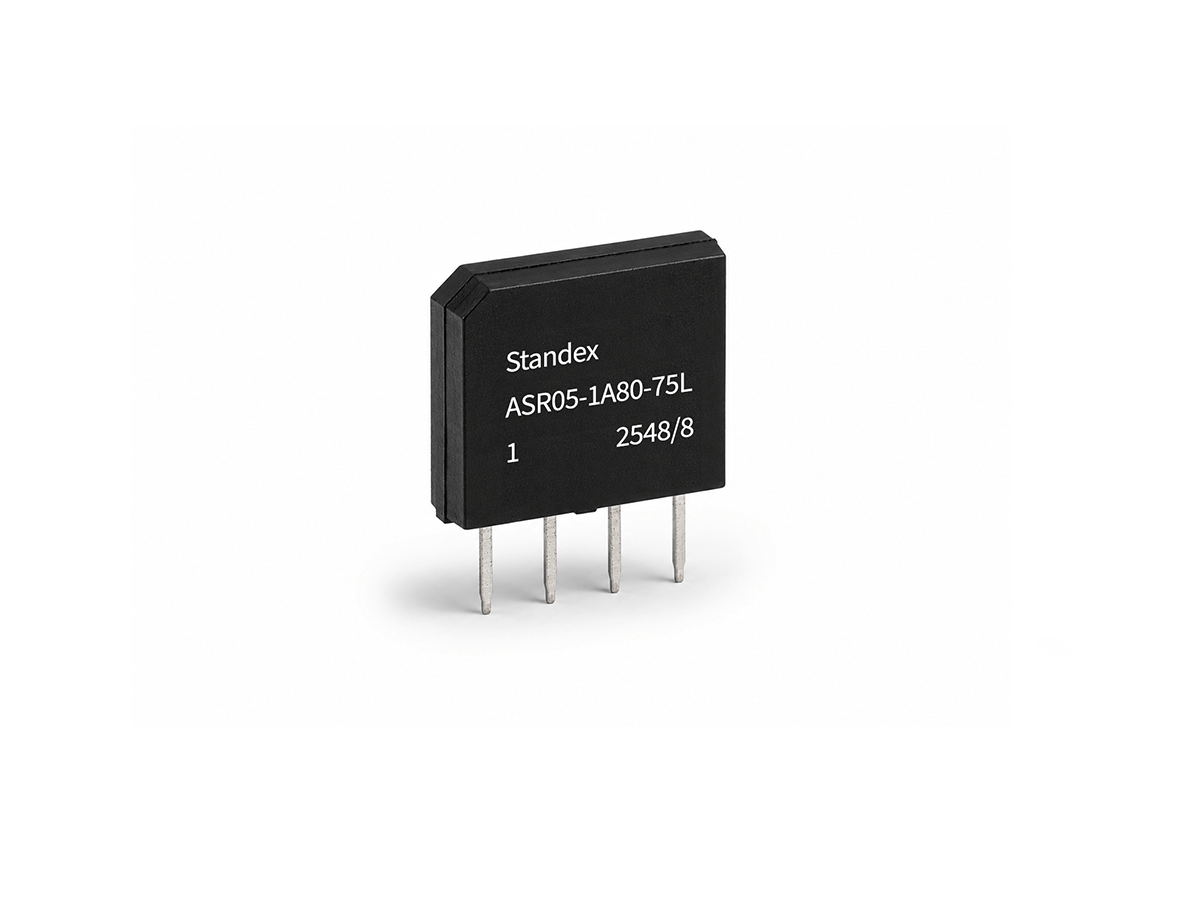

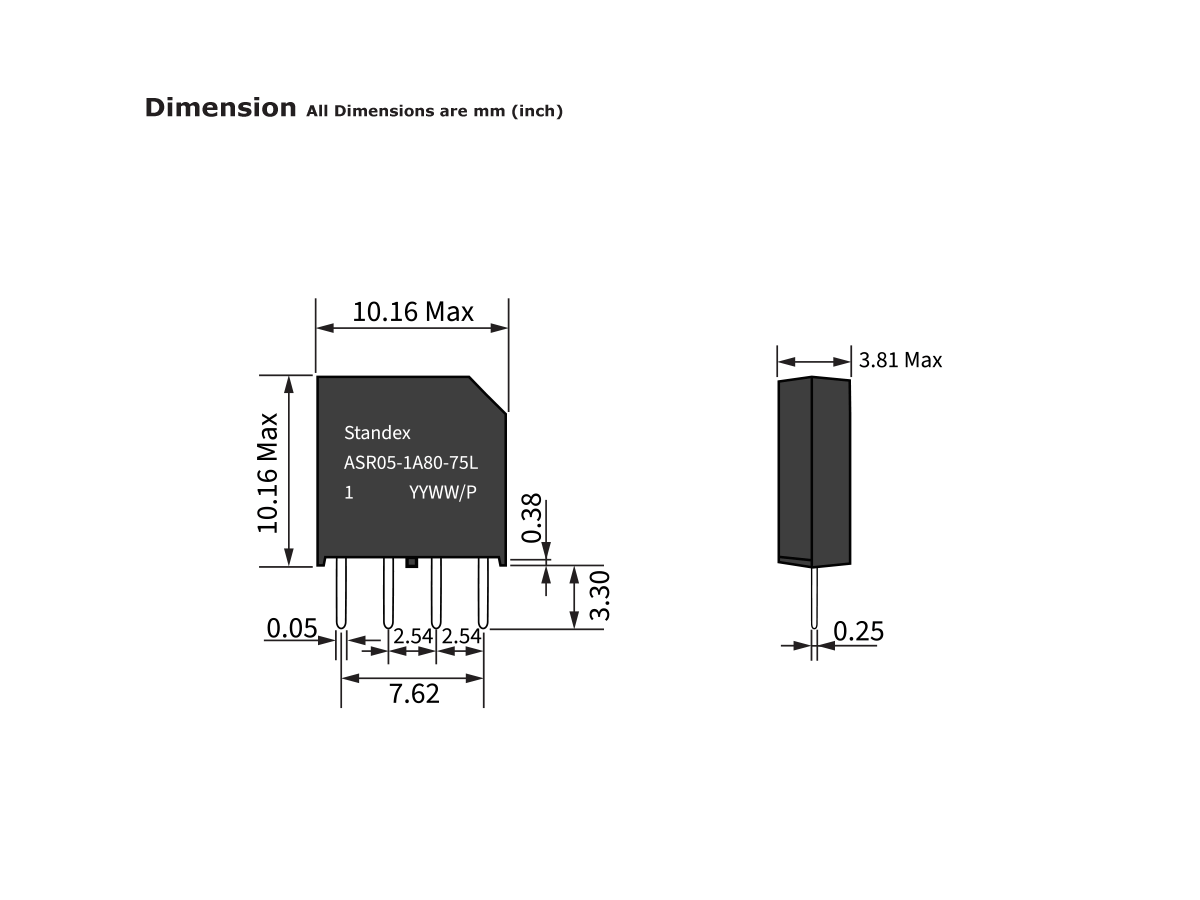

ASR Series Reed Relay
ASR Series is an ultra-miniature, instrumentation-grade reed relay designed for high-density PCB layouts and precise switching in compact electronic systems. The ASR Series is ideal for tightly stacked matrices in test and measurement, telecommunications, and security applications.
Encased in a micro single-in-line (SIL) package, the ASR Series features SPST-NO (Form 1A) contact configuration and supports coil voltages of 5 VDC with coil resistance up to 200 mΩ. Rated for up to 10 W, 170 VDC, and 0.5 A, it includes an internal magnetic shield and optional diode protection for improved signal integrity and reliability. UL certification ensures compliance with global safety standards.
- SPST-NO (Form 1A) contact configuration
- Rated for 10 W, 170 VDC, and 0.5 A switching capacity
- Coil voltage: 5 VDC
- Coil resistance: 200 mΩ
- Internal magnetic shielding for signal isolation
- Optional diode protection for coil suppression
- UL Certificate of Compliance for safety assurance
- Through-hole (THT) mounting for secure PCB integration
- Optimised for high-density relay matrices
| Coil Voltage (VDC) | 5 |
| Coil Resistance (mΩ) | 200 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/170VDC/0.5A |
- Test & Measurement (ATE): Compact relay arrays for precision switching
- Telecommunications: Signal routing in miniaturised network modules
- Security Systems: Reliable switching in alarm and access control devices
- Industrial Electronics: Space-saving relay integration in embedded systems
- Medical Devices: Compact relay control in diagnostic equipment
