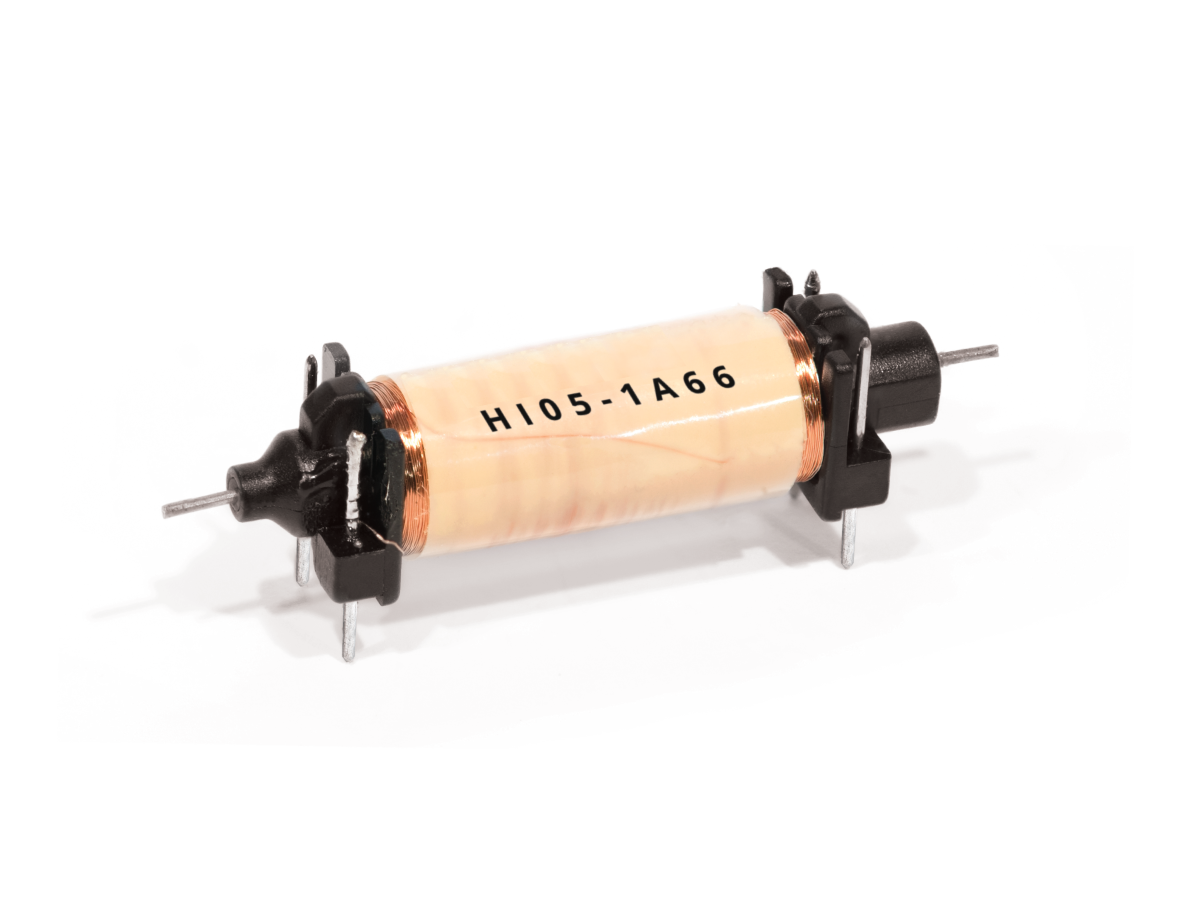

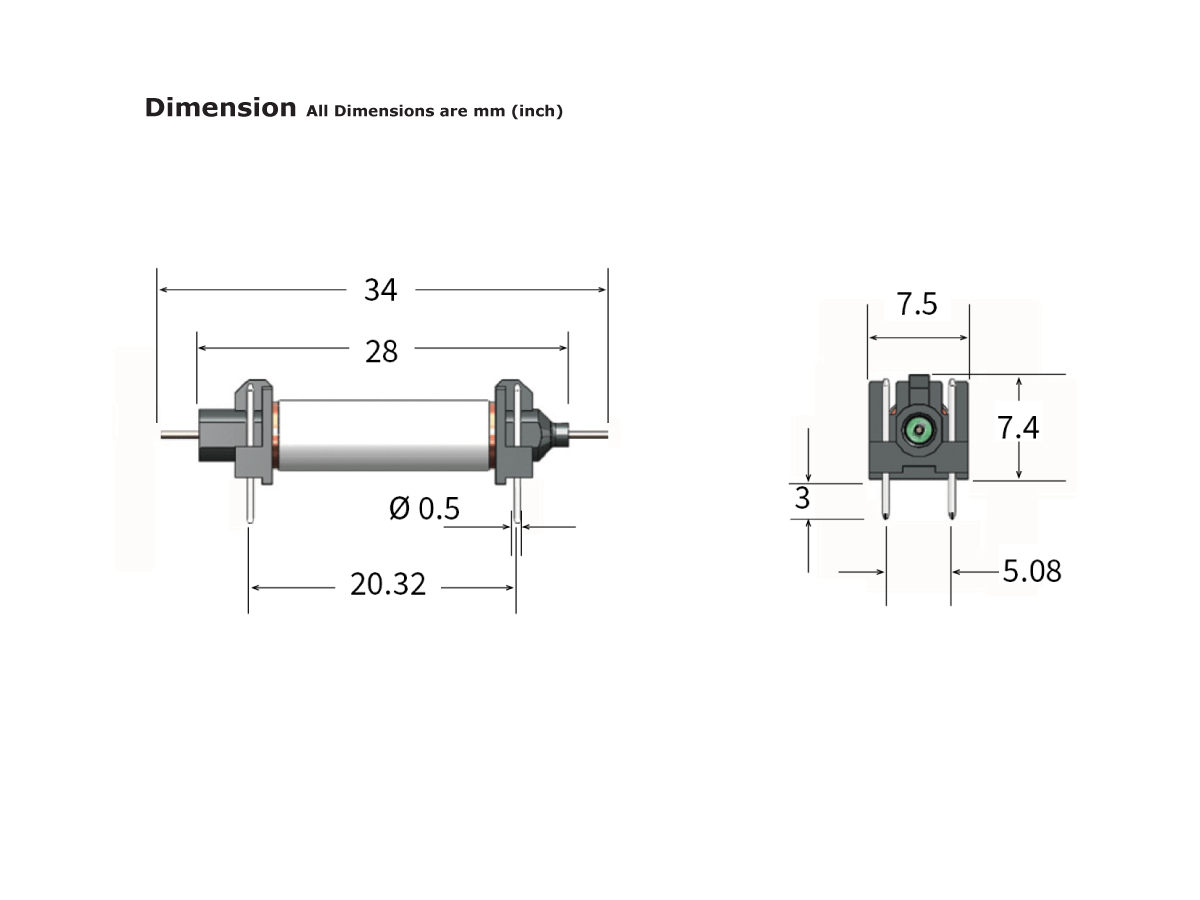

HI Series Reed Relay
The HI Series is a high-voltage, high-insulation reed relay designed for ultra-low leakage and precision switching in demanding environments. Engineered with extended creepage distances and specialized materials, the HI Series achieves insulation resistance greater than 10¹⁴ Ω, making it ideal for applications requiring picoamp-level leakage currents and high dielectric strength.
Available in SPST-NO (Form A) contact configurations, the HI Series supports coil voltages of 5 VDC and 12 VDC, and is rated for up to 100 W, 1000 VDC, and 1.0 A. Its open-frame design and high leakage distance ensure safe operation in high-voltage systems, while through-hole mounting provides secure PCB integration. The HI Series is a trusted solution for test and measurement, control systems, and medical equipment requiring high isolation and reliability.
- Ultra-high insulation resistance >10¹⁴ Ω for minimal leakage current
- SPST-NO (Form A) contact configuration
- Rated for 100 W, 1000 VDC, and 1.0 A
- Coil voltage options: 5 VDC and 12 VDC
- High leakage distance for enhanced safety in high-voltage environments
- Open-frame design for thermal and mechanical stability
- Through-hole mounting for secure PCB integration
- Ideal for precision switching in low-leakage applications
| Coil Voltage (VDC) | 5, 12 |
| Coil Resistance (Ω) | 140-900 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 100W/1000VDC/1A |
- Test & Measurement (ATE): High-isolation switching in sensitive test systems
- Medical Equipment: Low-leakage signal routing in diagnostic devices
- Control Systems: Reliable switching in high-voltage industrial environments
- Semiconductor Testing: Precision isolation in automated test platforms
- Instrumentation: Signal integrity in ultra-sensitive measurement setups
