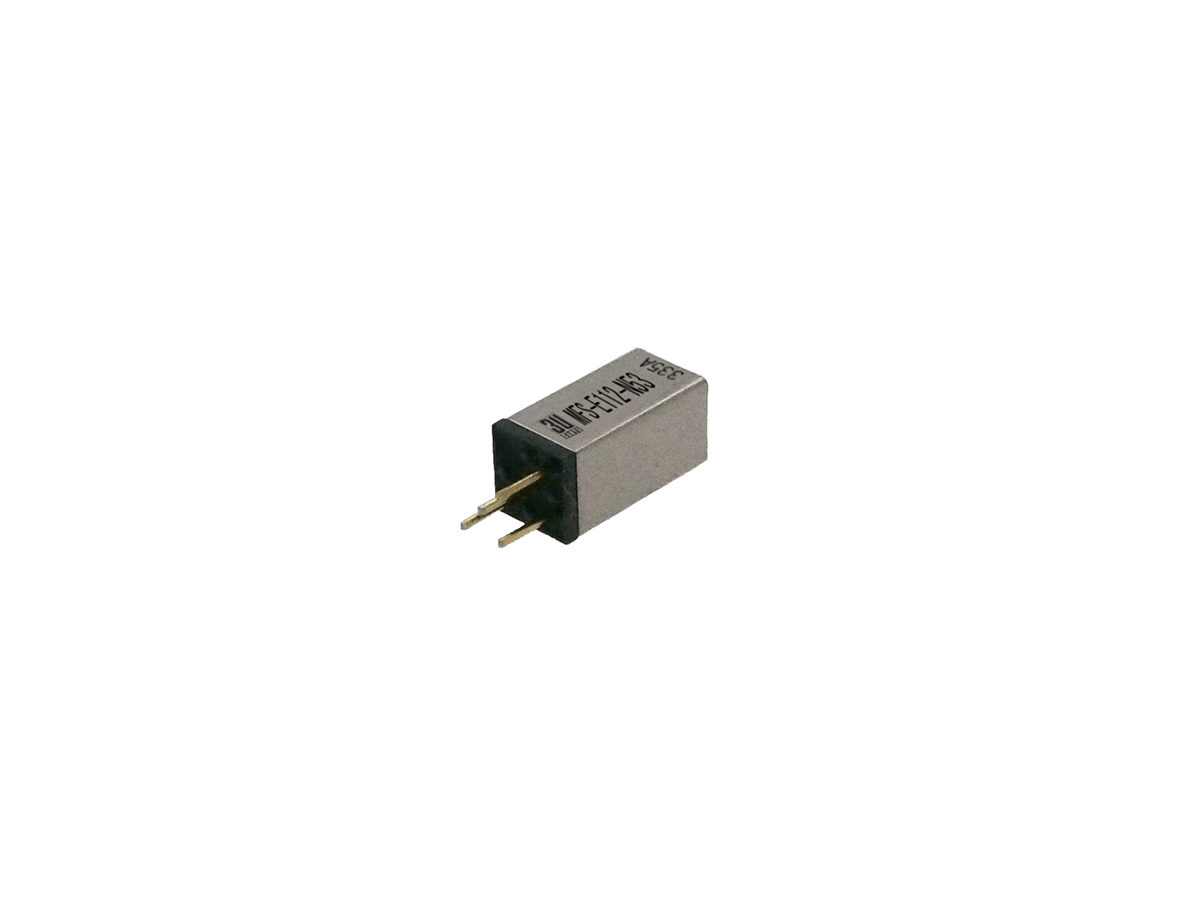

MFS Series Reed Relay

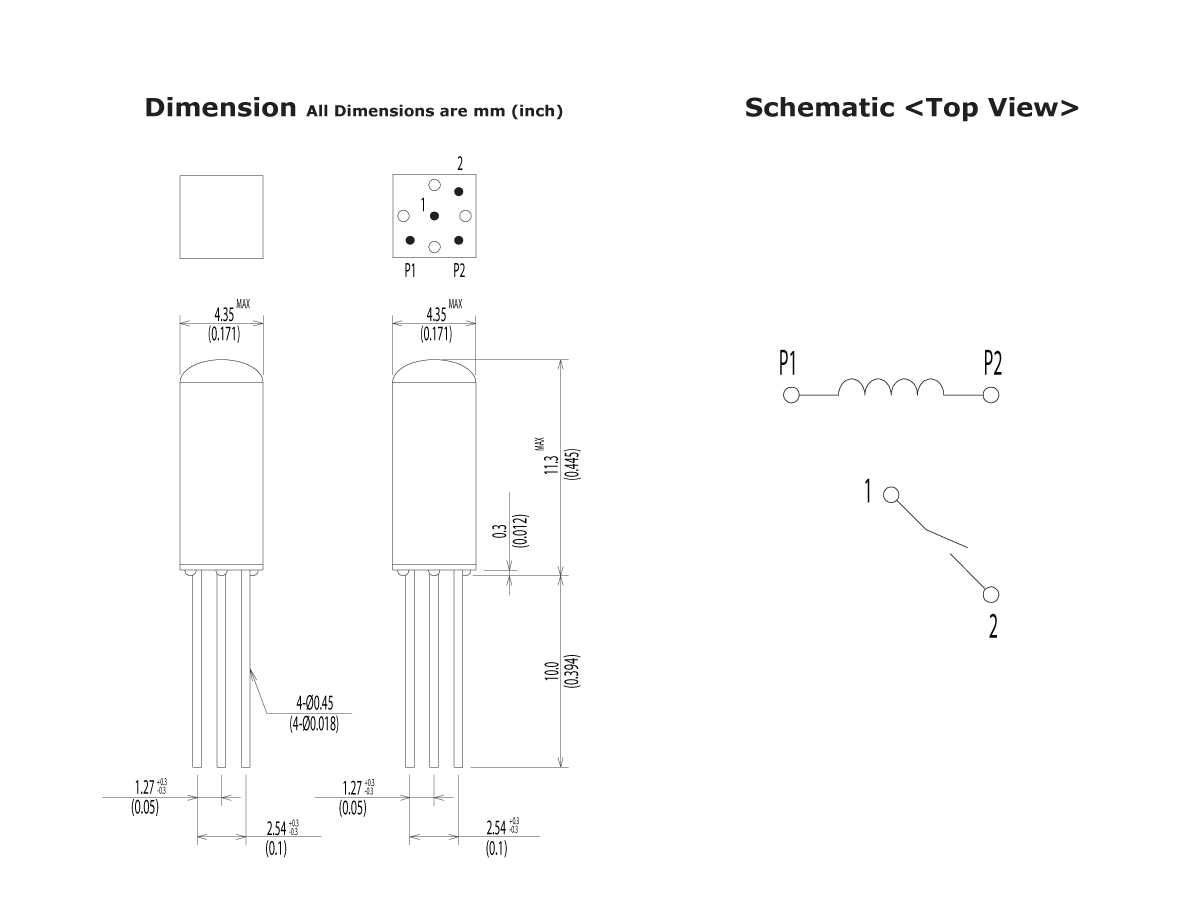

The MFS Series is an ultra-high-density reed relay engineered for compact PCB layouts and precision switching in space-constrained environments. With a vertical square form factor measuring just 4.35 × 4.35 mm, it offers the smallest footprint in its class, enabling up to 500 relays on an 8” board and 1,000 relays on a 12” board. This makes the MFS Series ideal for IC testing, automated test equipment (ATE), and high-density signal routing.
Available in SPST-NO (Form A) contact configuration, the MFS Series supports coil voltages of 5 VDC and 12 VDC, and is rated for up to 5 W, 50 VDC, and 0.2 A. Through-hole vertical mounting ensures secure integration, while optional diode protection, single or double shielding, and relay sockets enhance performance, isolation, and ease of maintenance.
- Ultra-compact 4.35 × 4.35 mm footprint for high-density PCB assembly
- SPST-NO (Form A) contact configuration
- Rated for 5 W, 50 VDC, and 0.2 A switching capacity
- Coil voltage options: 5 VDC and 12 VDC
- Through-hole (THT) vertical mounting for secure placement
- Optional diode protection for coil suppression
- Single/double shielding options for improved signal isolation
- Relay socket options for simplified maintenance
- Optimized for IC testing and automated test environments
| Coil Voltage (VDC) | 5, 12 |
| Coil Resistance (Ω) | 150 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 5W/50VDC/0.2A |
| Life Expectancy (at 1V 10mA) | 300 Million Switching Cycles |
- Automated Test Equipment (ATE): Dense relay arrays for load boards
- Semiconductor Testing: High-density switching for wafer-level diagnostics
- Medical Devices: Compact relay integration in diagnostic systems
- Telecommunications: Signal routing in miniaturized network modules
- Instrumentation & Measurement: Precision switching in analytical equipment
