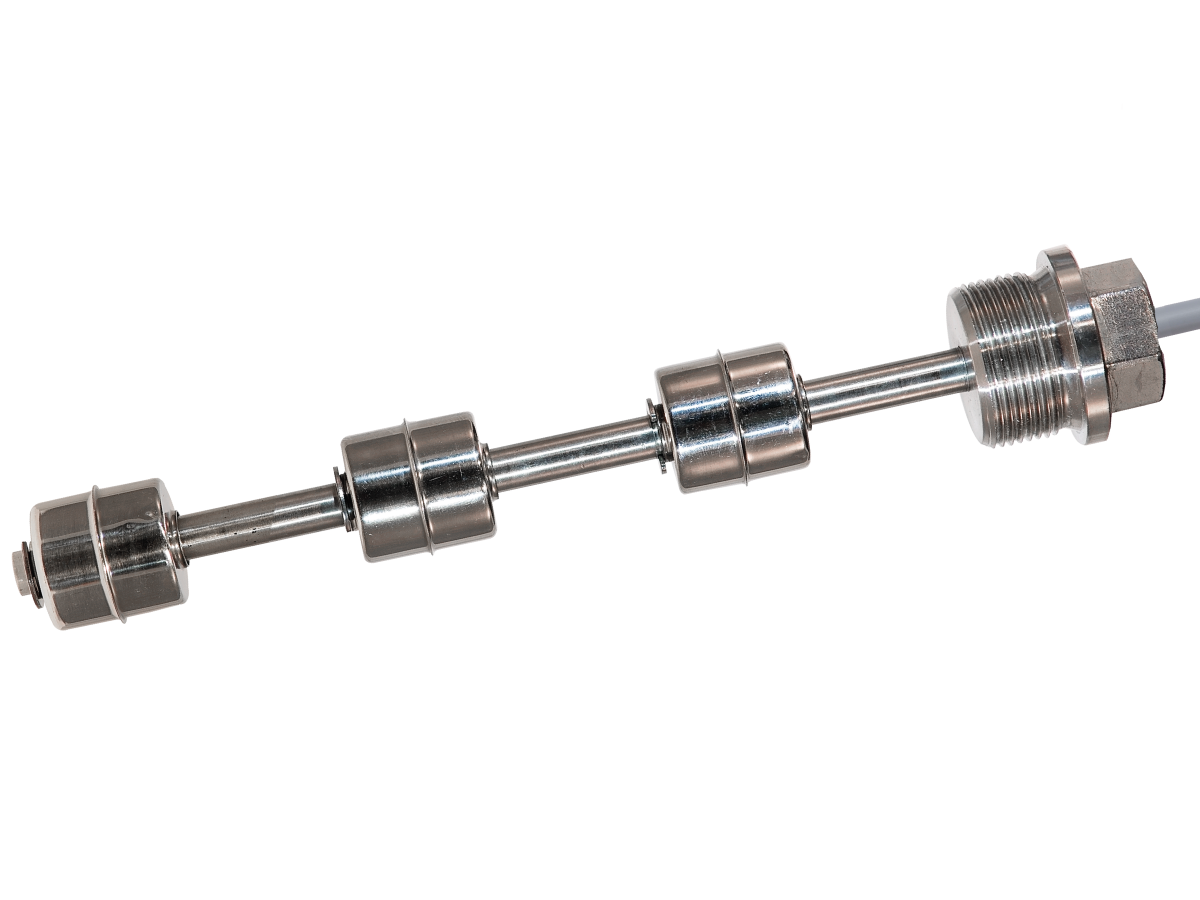

LS05 Series Liquid Level Sensor
The LS05 Series is a highly versatile stainless steel liquid level sensor designed for single-point, multi-point, and continuous level detection in harsh environments. With high temperature resistance up to 200°C and pressure tolerance up to 12 bar, it is ideal for demanding industrial and commercial applications.
Available in SPST-NO (Form A), SPST-NC (Form B), SPDT (Form C), and latching/bistable (Form E) contact configurations, the LS05 Series supports rated power up to 100 W, 400 VDC, and 1.0 A. It accommodates multiple floats with a minimum spacing of 1.5 inches and offers a wide range of cable and connector options for flexible integration.
- Stainless steel construction for durability in high-temperature and high-pressure environments
- Supports single, multi-point, and continuous level sensing

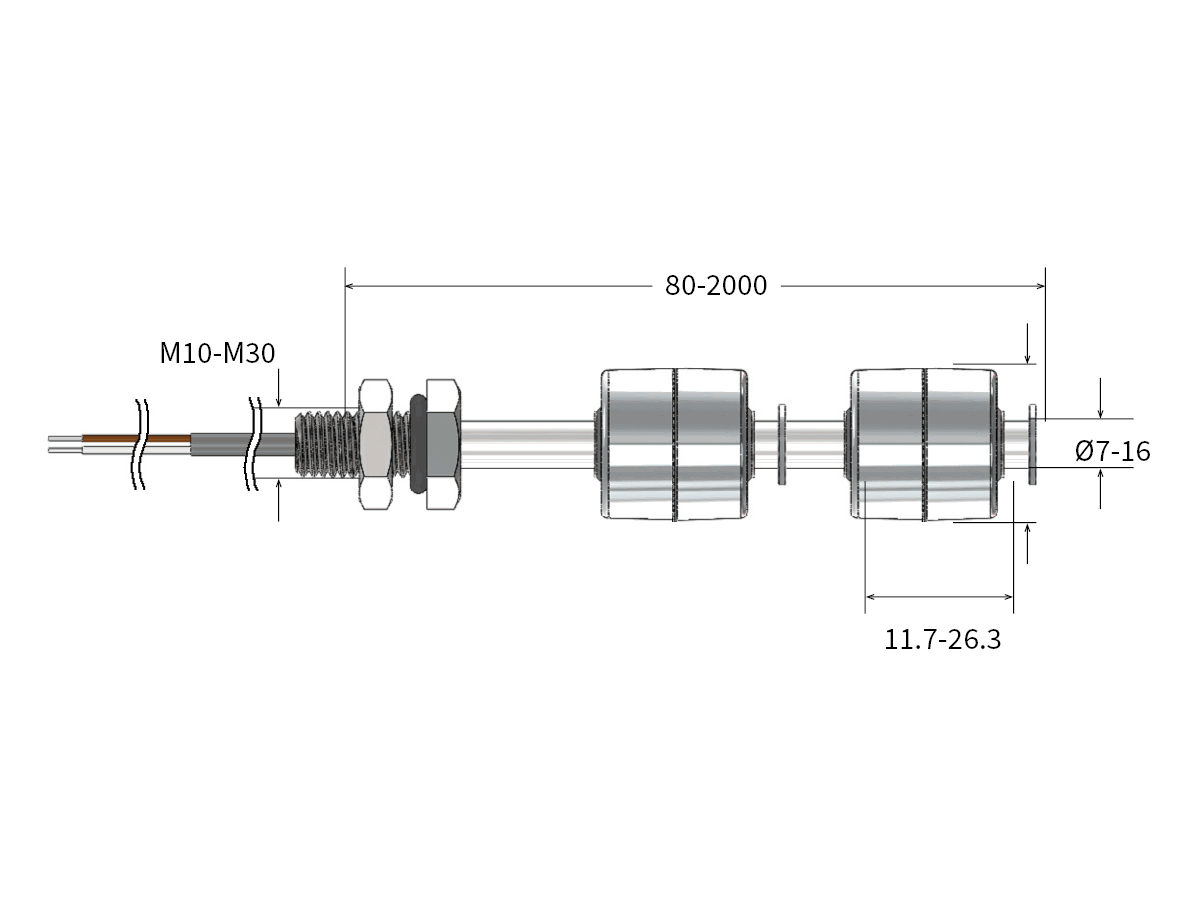

- Multiple float positions with minimum 1.5” spacing for advanced fluid monitoring
- Rated for up to 100 W, 400 VDC, and 1.0 A for high-power applications
- Available in multiple contact forms (Form A, B, C, E) for flexible switching logic
- Customizable cable and connector options for tailored system integration
- UL approved for safety and compliance
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 1E Latching/Bistable |
| Rated Power Max. | 100W/400VDC/1.0A |
| Shaft/Float | SS/PA, PP, NBR, SS |
- Automotive Systems: Multi-fluid level monitoring (fuel, coolant, brake fluid)
- Industrial Controls: Tank level monitoring, pump activation
- Food & Beverage: Liquid level detection in processing and storage systems
- Laboratory Equipment: Multi-point fluid sensing in analytical instruments
- Marine Systems: Bilge and tank level monitoring
- Home Appliances: Water level detection in multi-chamber systems
- Aviation: Fluid level sensing in aircraft systems
