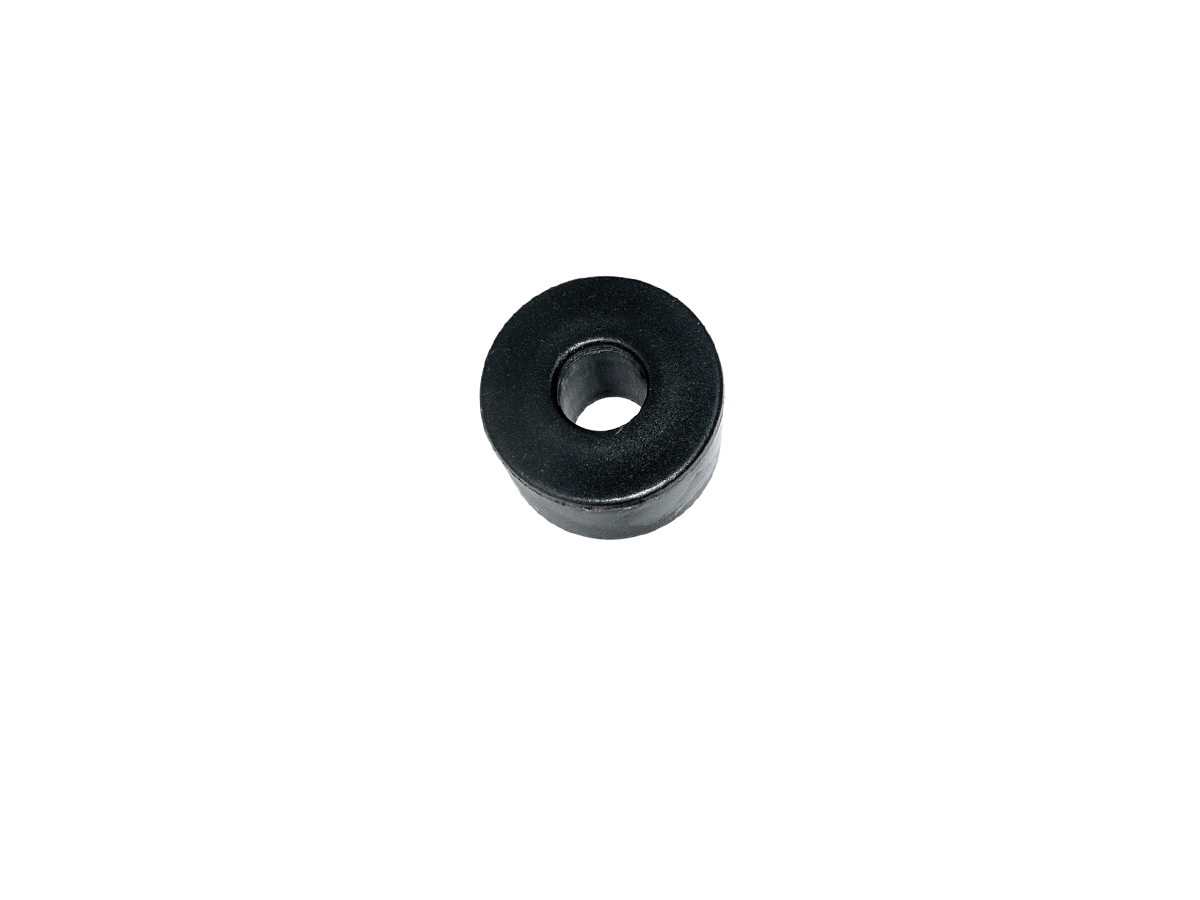

MS02-NBR Series Magnetic Float
The MS02-NBR Series Magnetic Float ring actuator magnet (excentric) have excellent resistance to petroleum-derived liquids such as oil and gasoline and can be used in high temperature applications as well. Suited for stems with an outer diameter up to 8.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02, LS02-S, LS04, LS05.

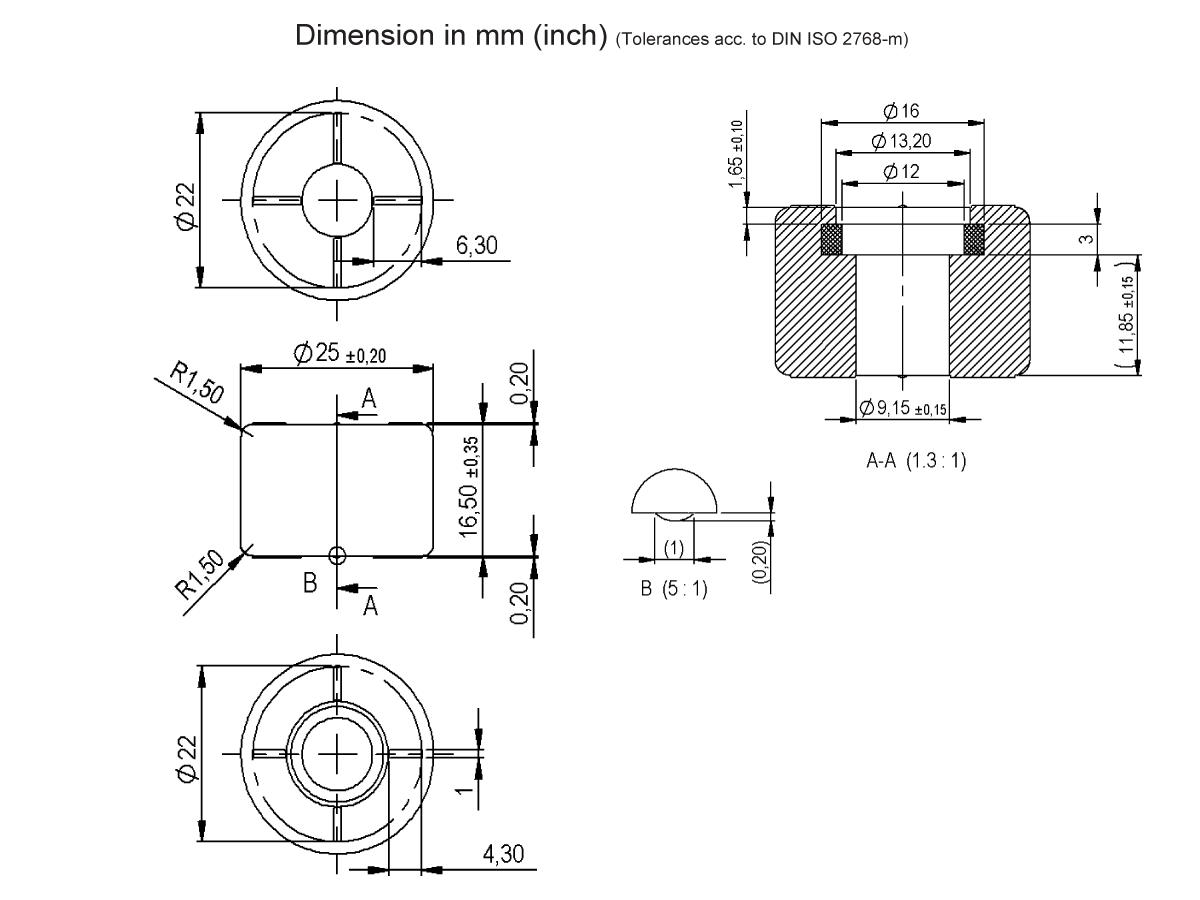

| Outside Dia. mm (inches) | 25 (0.984) |
| Inside Dia. mm (inches) | 9.15 (0.360) |
| Height mm (inches) | 16.5 (0.649) |
Petroleum-derived liquids such as oil and gasoline, high temperatures. Compatible with the LS01, LS02, LS02-S, LS04, LS05 liquid level sensor series.
