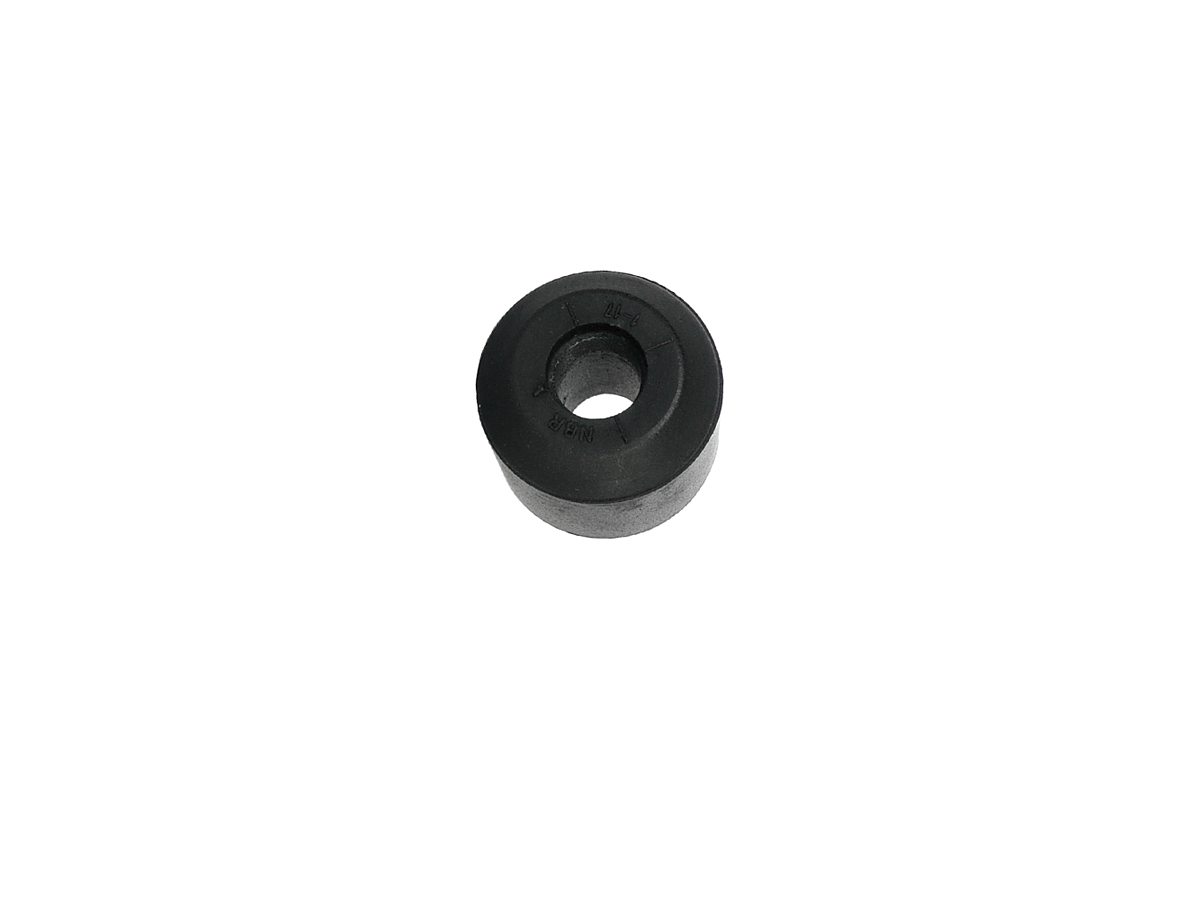

MS02-PA Series Magnetic Float
The MS02-PA Series Magnetic Float ring actuator magnet (excentric) are made of nylon, have a very high strength-to-weight ratio making them shock and abrasion resistant as well as capable of enduring a 5 bar pressure (73 PSI or 0.5 MPa). Additionally, PA floats have a high resistance to many chemicals and are therefore an ideal solution in fuel tanks, oil containers or brake fluid reservoirs. Suitable for stems with an outer diameter up to 8.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02-S, LS05.

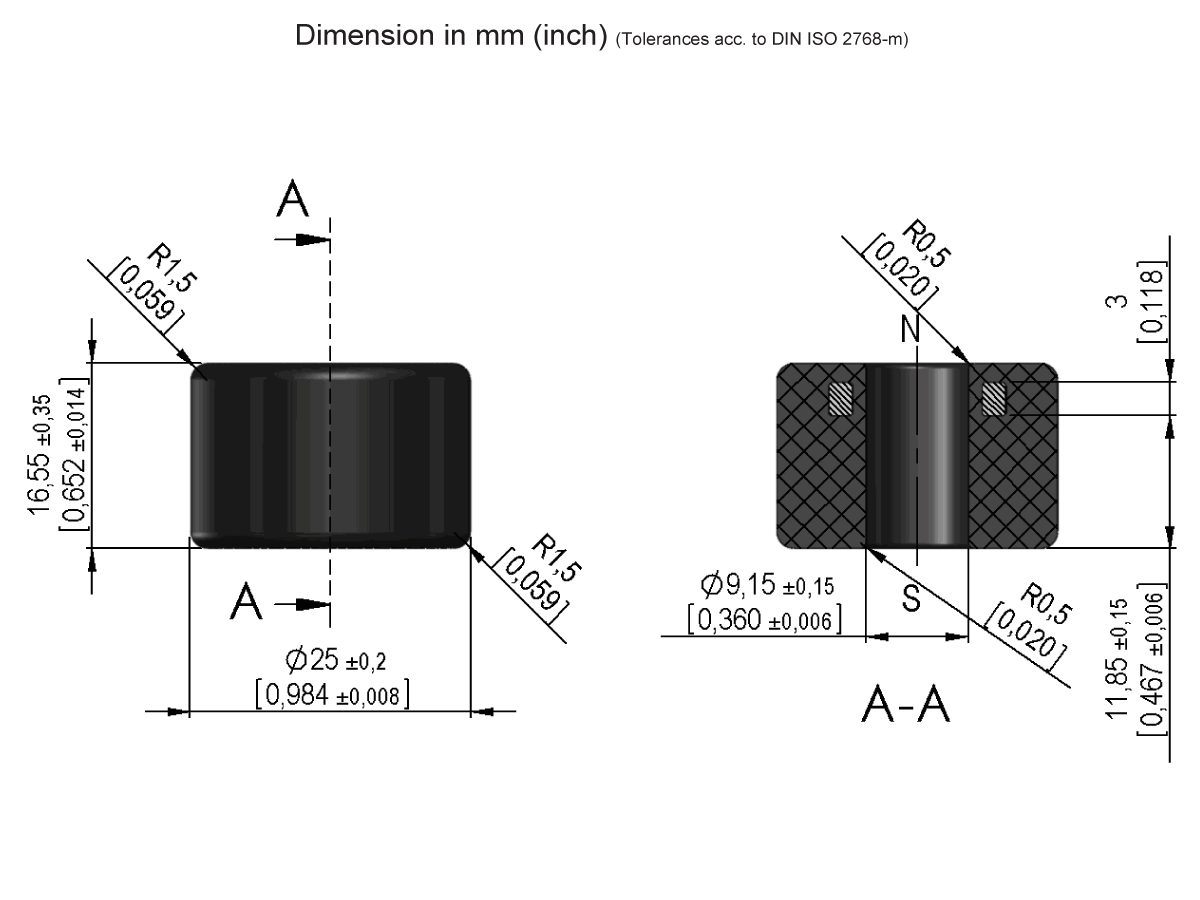

| Outside Dia. mm (inches) | 25.0 (0.984) |
| Inside Dia. mm (inches) | 9.15 (0.360) |
| Height mm (inches) | 16.55 (0.651) |
Fuel tanks, oil containers or brake fluid reservoirs. Compatible with the LS01, LS02-S, LS05 liquid level sensor series.
