Home Products Sensors Liquid Level Sensors and Floats MS09-S Series Magnetic Float

MS09-S Series Magnetic Float

Request a Quote

Custom Sensors

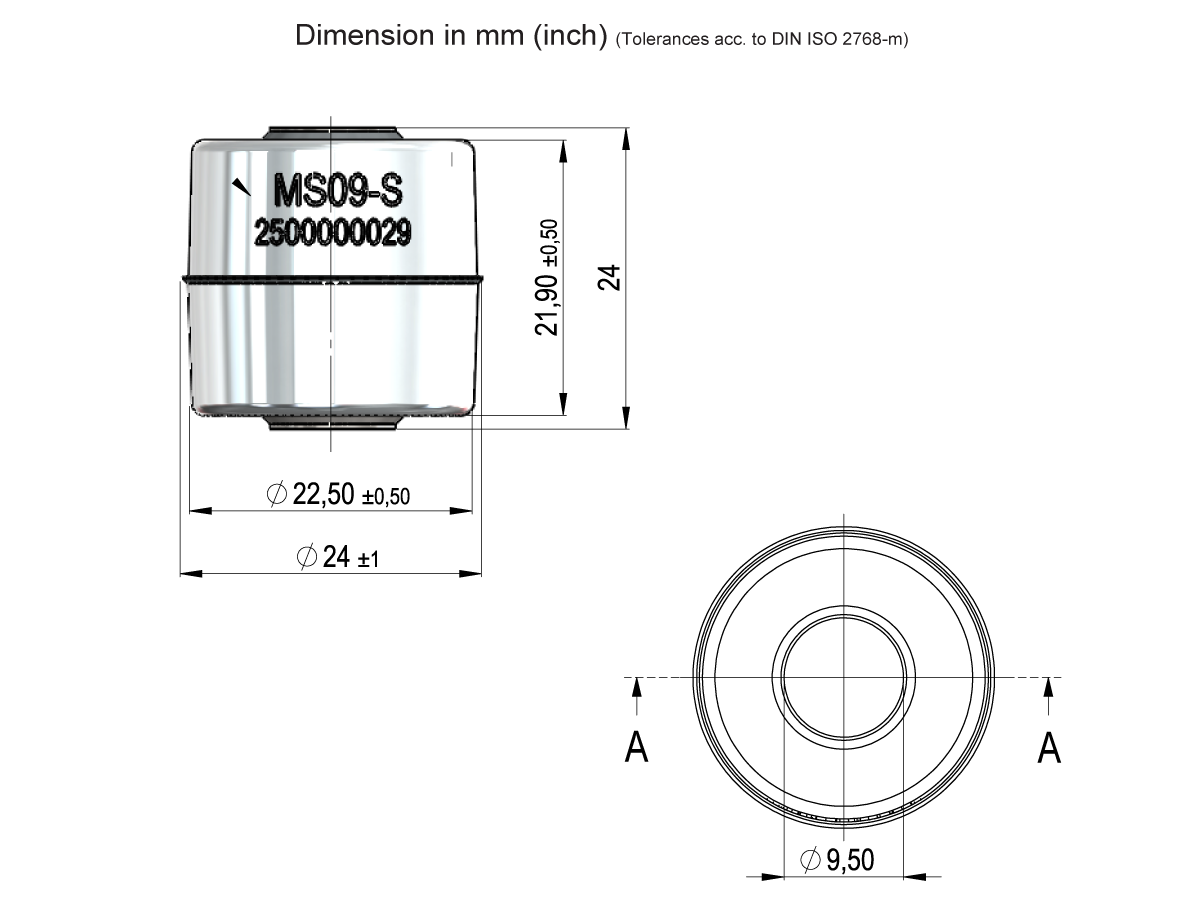

Technical drawing of a cylindrical Magnetic Float labeled “MS09-S 2500000029” from the MS09-S Series, with dimensions: height 24 mm, outer diameter 22.50 mm, and inner diameter 21.90 mm, shown in front and top views with section line A-A. by Standex Detect

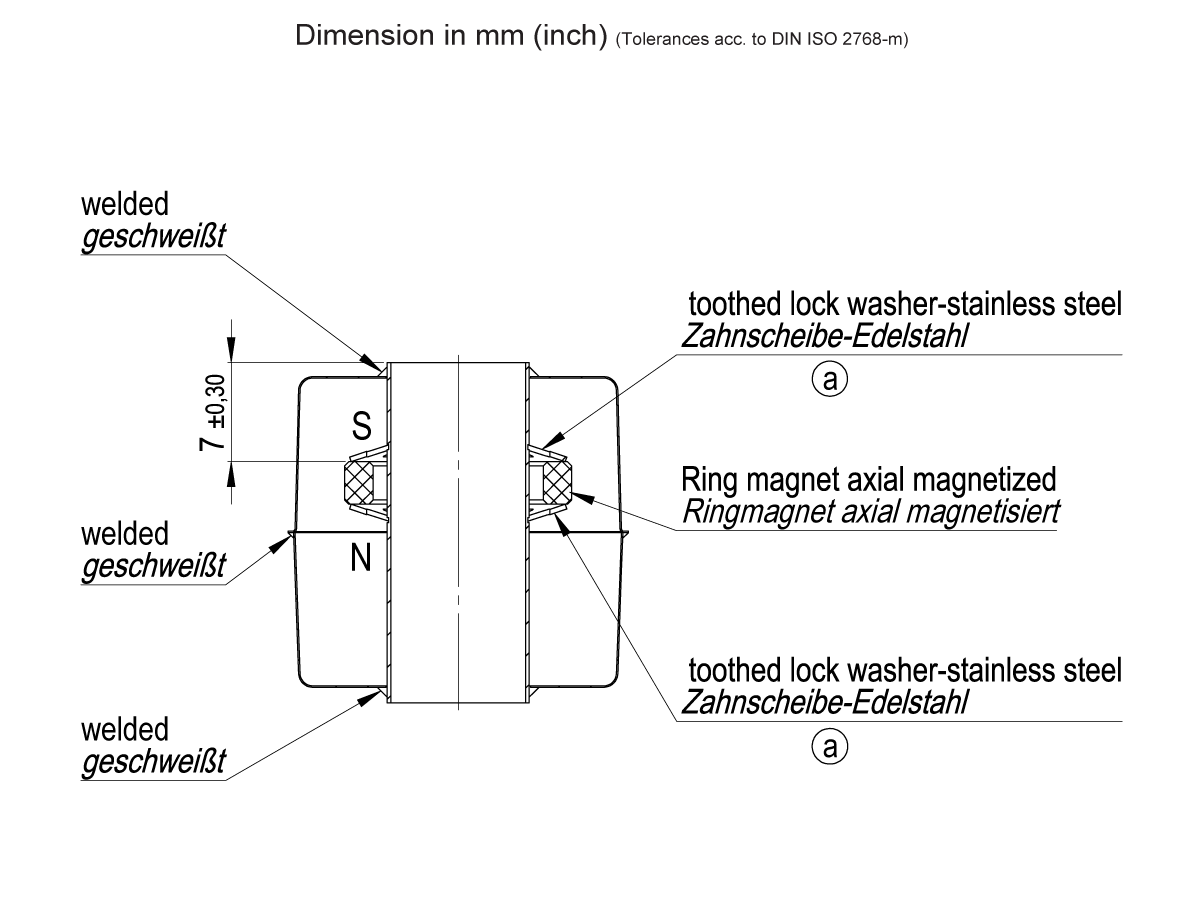

Technical drawing of an MS09-S Series ring magnet with axial magnetization between two toothed lock washers (stainless steel), all labeled in English and German. Dimensions in millimeters; welded sections marked on both sides. Magnetic float shown. by Standex Detect

Data Sheet Download

Product Line Brochure: Level Sensors & Floats
