M37 Series Magnet

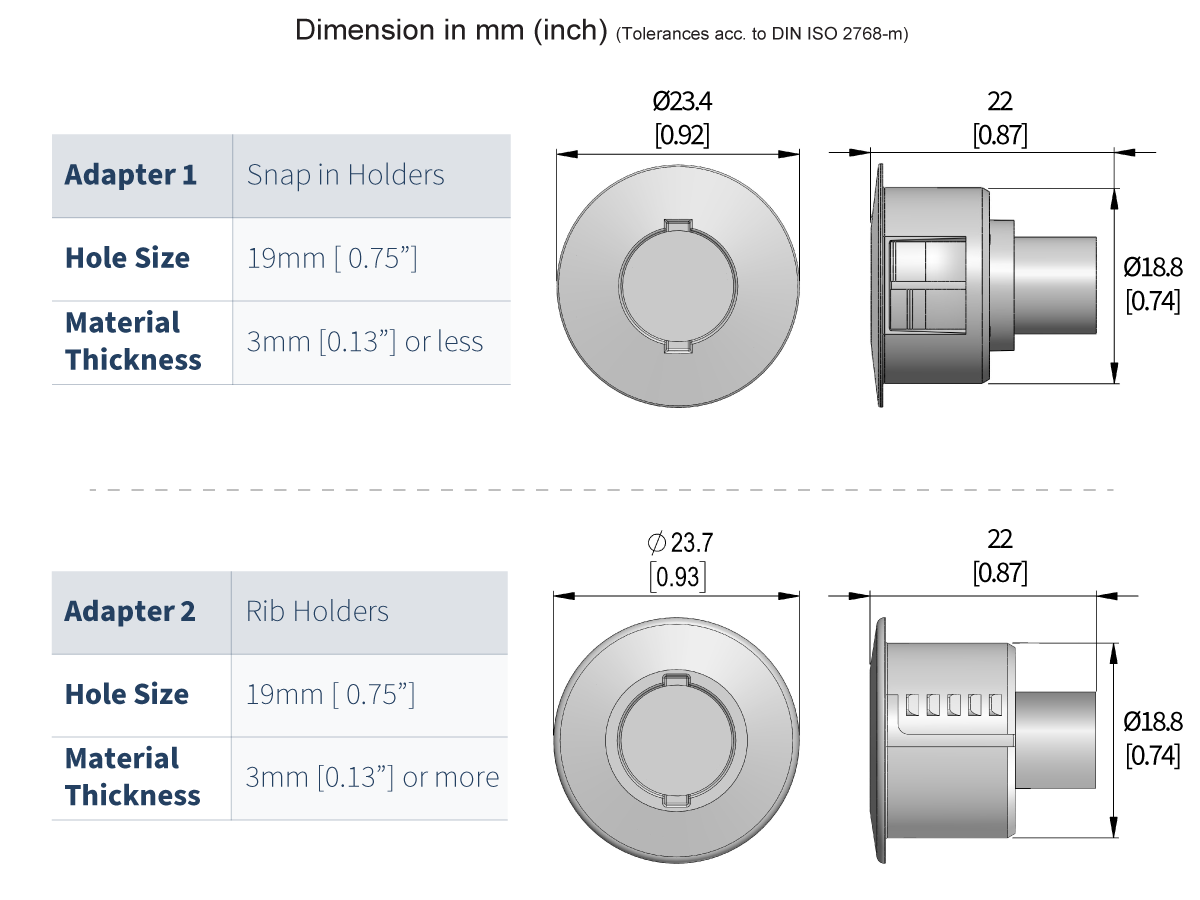

The M37 Series is a miniature cylindrical recessed sensor magnet designed for installation in a ø3/8” hole, or in a ø3/4” hole when using an adapter. When using an adapter, the sensor magnet is designed for a press-fit installation that utilises crush ribs to retain the magnet in the installation hole. Designed to pair with the MK37 Series reed sensor (sold separately), this magnet enables precise and repeatable actuation in systems requiring consistent magnetic triggering.

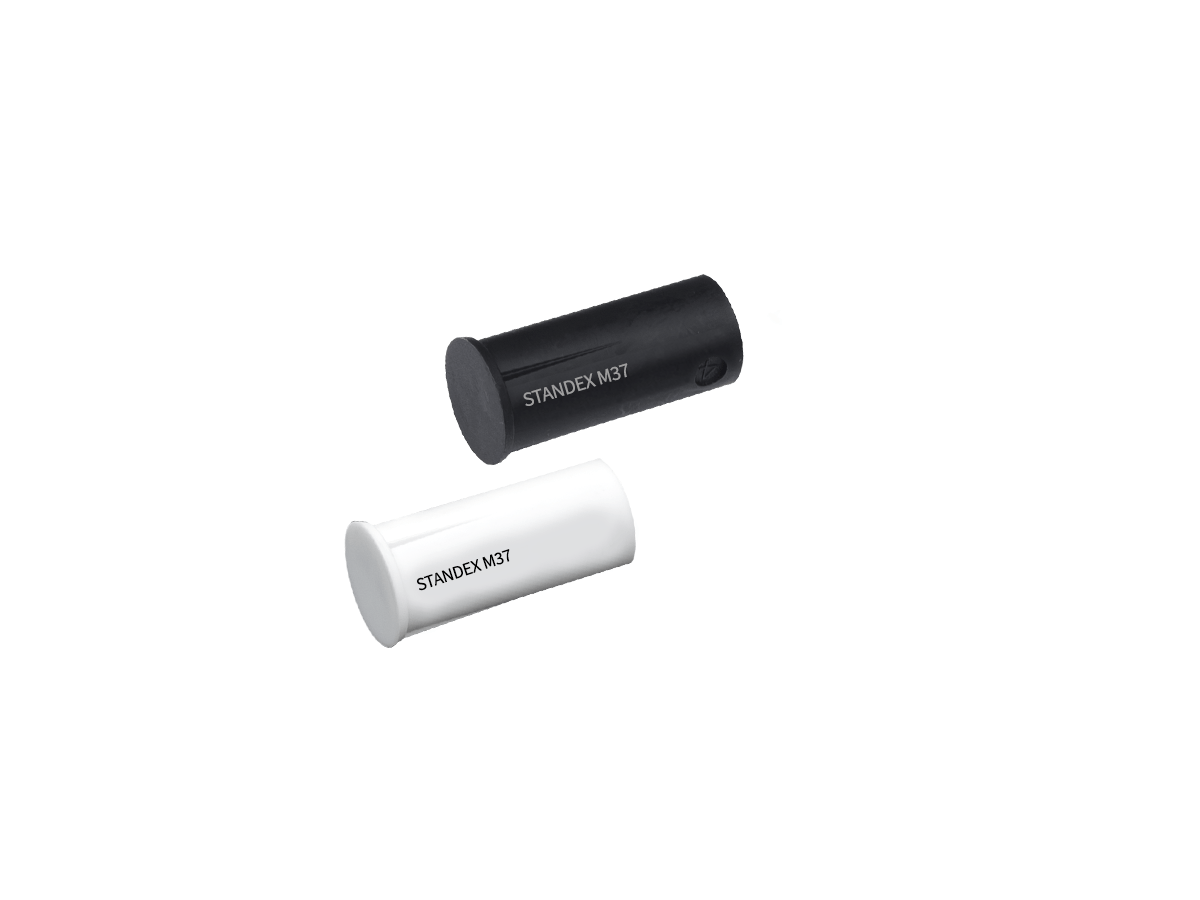

The magnet can also be paired with an MK36, MK38 sensor (sold separately) for longer switching distances. Magnet housings are available in both white and black.
- Secure, flush installation ke liye threaded press fit housing (Dia. 10.7 x L 22mm)
- Black ya white housing option
- MK37 Series reed sensors ke liye optimised, ya MK36 ya MK38 ke saath pair kiya ja sakta hai
- Motion aur position detection ke liye reliable proximity sensing
- Industrial automation, compact machinery, aur OEM designs ke liye ideal

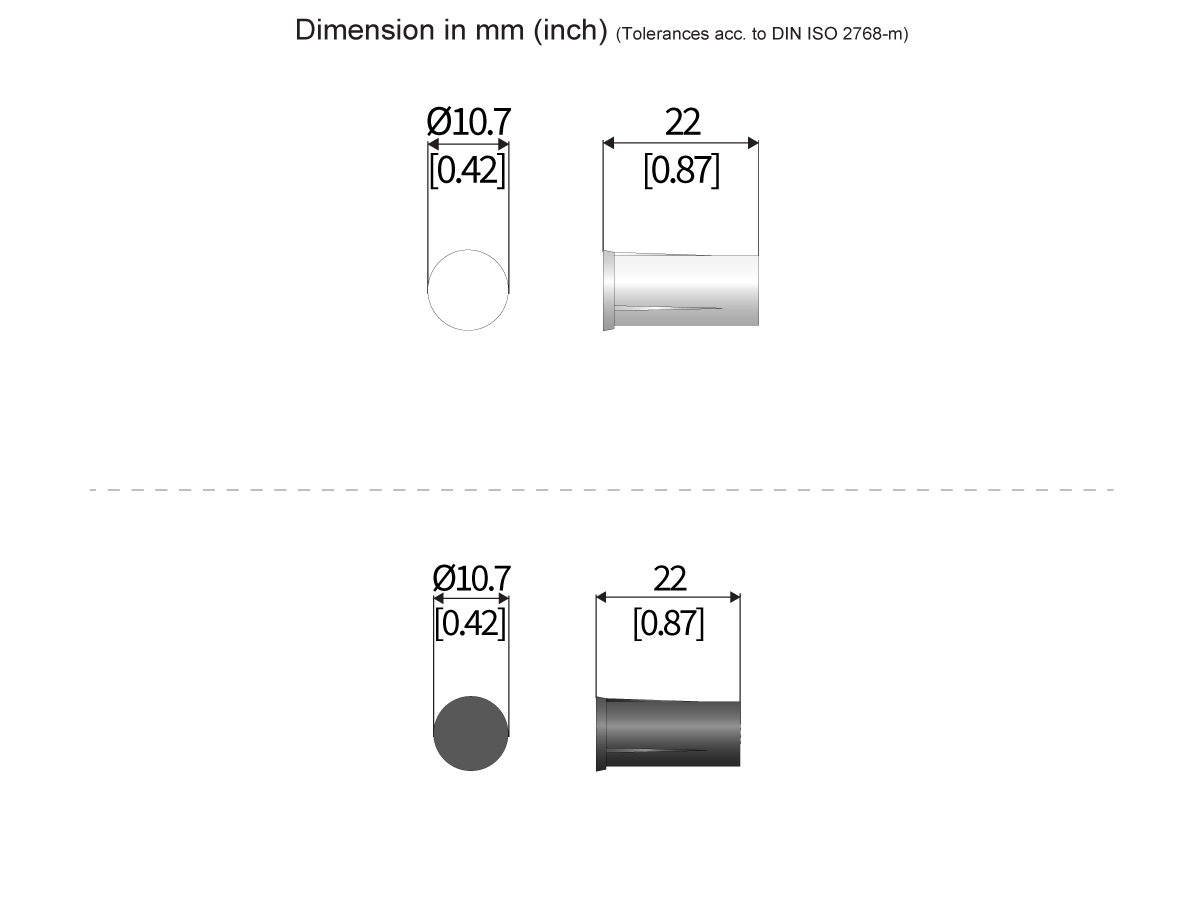

| Length: | 22.0 mm (0.87″) |
| Diameter: | 10.7 mm (0.42″) |
- Security panels and machine controls
- Building Automation and Security
- Home Appliances
- Limit sensing
