AM Series Magnet

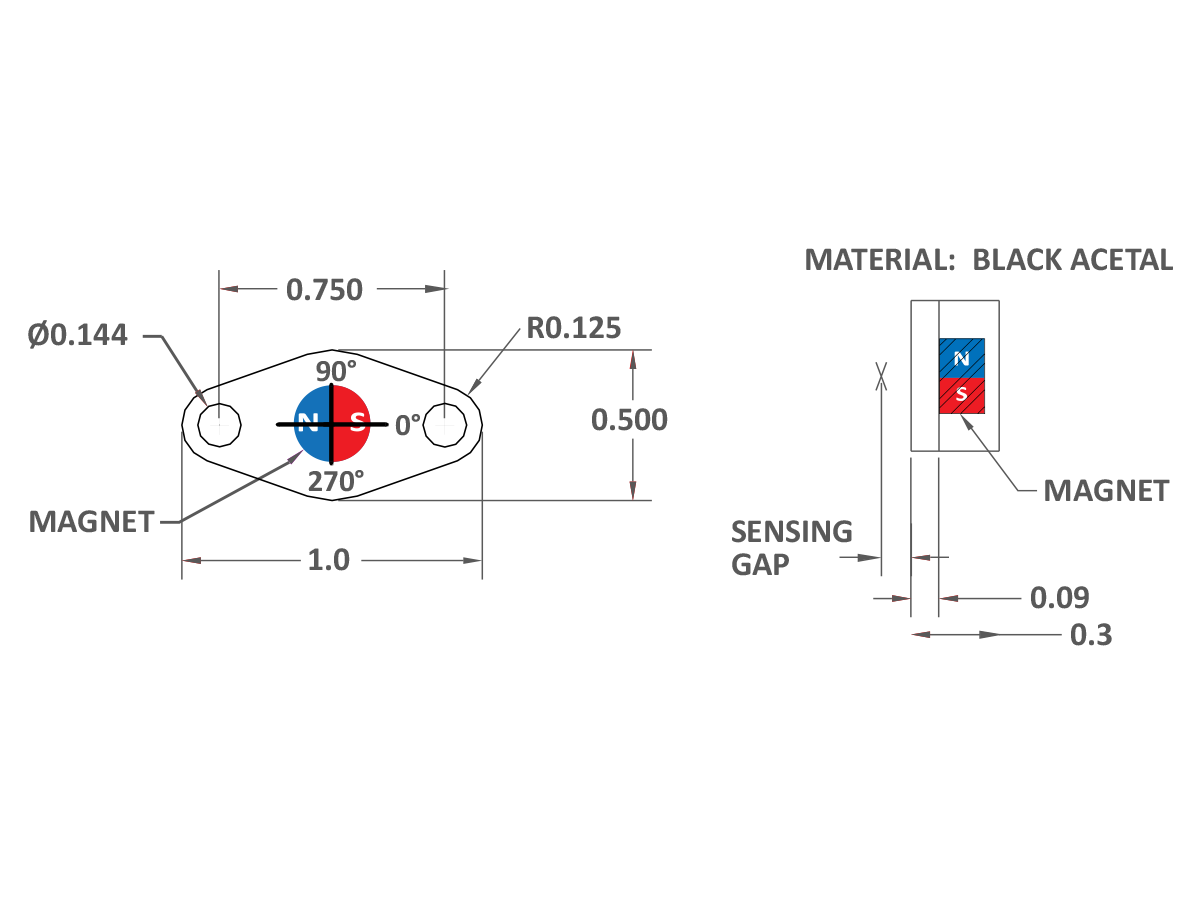

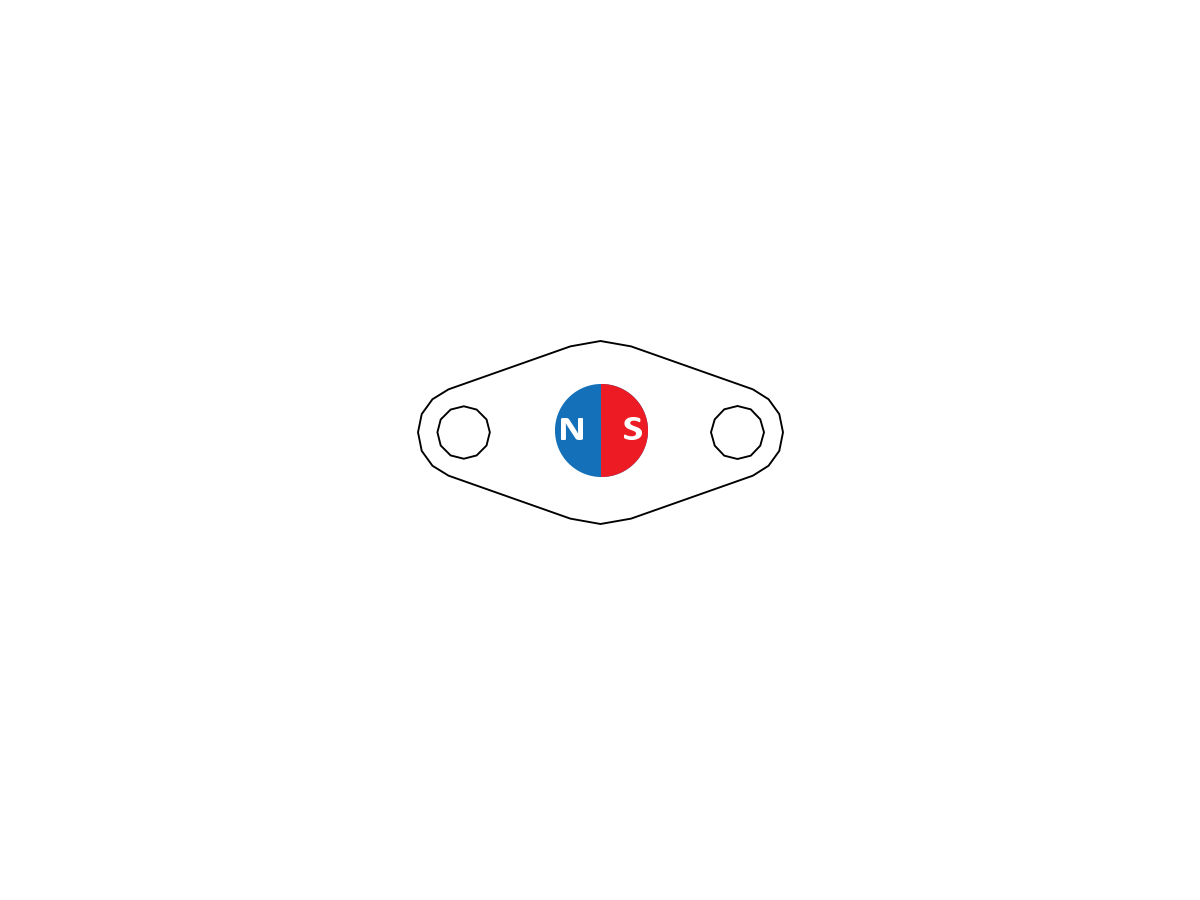

The AM series magnet is a potted, radially magnetized magnet housed in a compact casing designed specifically for use with angular position sensors. Engineered to deliver consistent magnetic field strength across a defined sensing gap, this magnet enables precise rotational angle detection when paired with the APS Series Angle Position Sensor series.
Design Notes:
- These magnets, when paired with Angular Position Sensors will provide an analog output that can be used to resolve the rotation angle between the sensor and the target.
- Additional housing shapes and magnet sizes are available.
- Optimized for Angular Sensing: Designed to work seamlessly with APS sensors to provide analog output for rotational angle measurement.
- Compact and Durable Housing: Potted construction ensures environmental protection and mechanical stability.
- Customizable Options: Additional housing shapes and magnet sizes available upon request to suit specific application needs.
- Versatile Integration: Suitable for both OEM and retrofit applications across multiple industries.
- Manufacturing & Robotics: Facilitates motion control and position tracking.
- Aerospace: Used in control systems and instrumentation for precise angle feedback.
- Agricultural Equipment: Enables accurate positioning in automated machinery.
- Automotive & Heavy Equipment: Supports steering, throttle, and suspension angle sensing.
- Consumer Electronics: Integrates into devices requiring rotational input or feedback.
- Manufacturing & Robotics: Facilitates motion control and position tracking.
- Marine & Medical Devices: Provides reliable sensing in harsh or sensitive environments.
- Military & Power Generation: Ensures robust performance in mission-critical systems.
- Transportation Systems: Used in rail, transit, and mobility solutions for angle detection.
