MK36 Series Reed Sensor

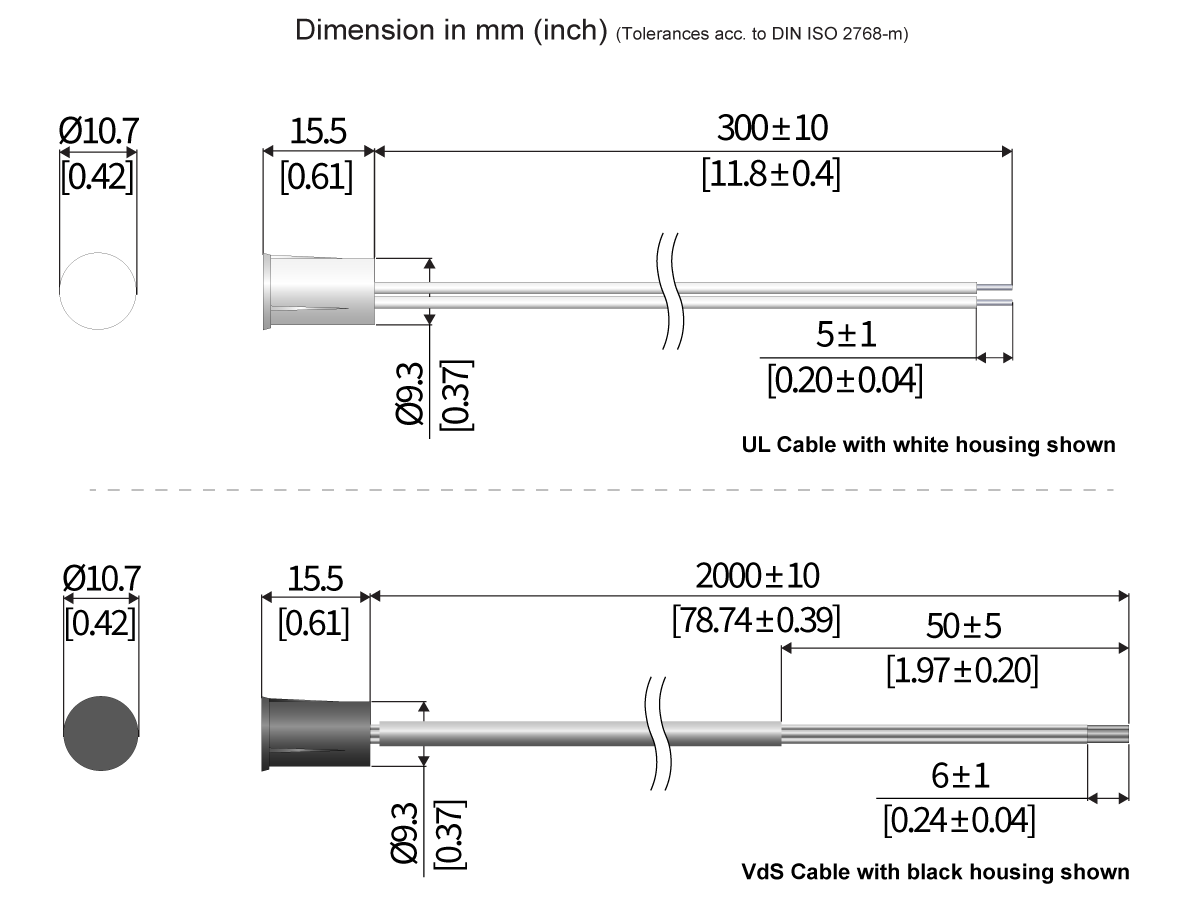

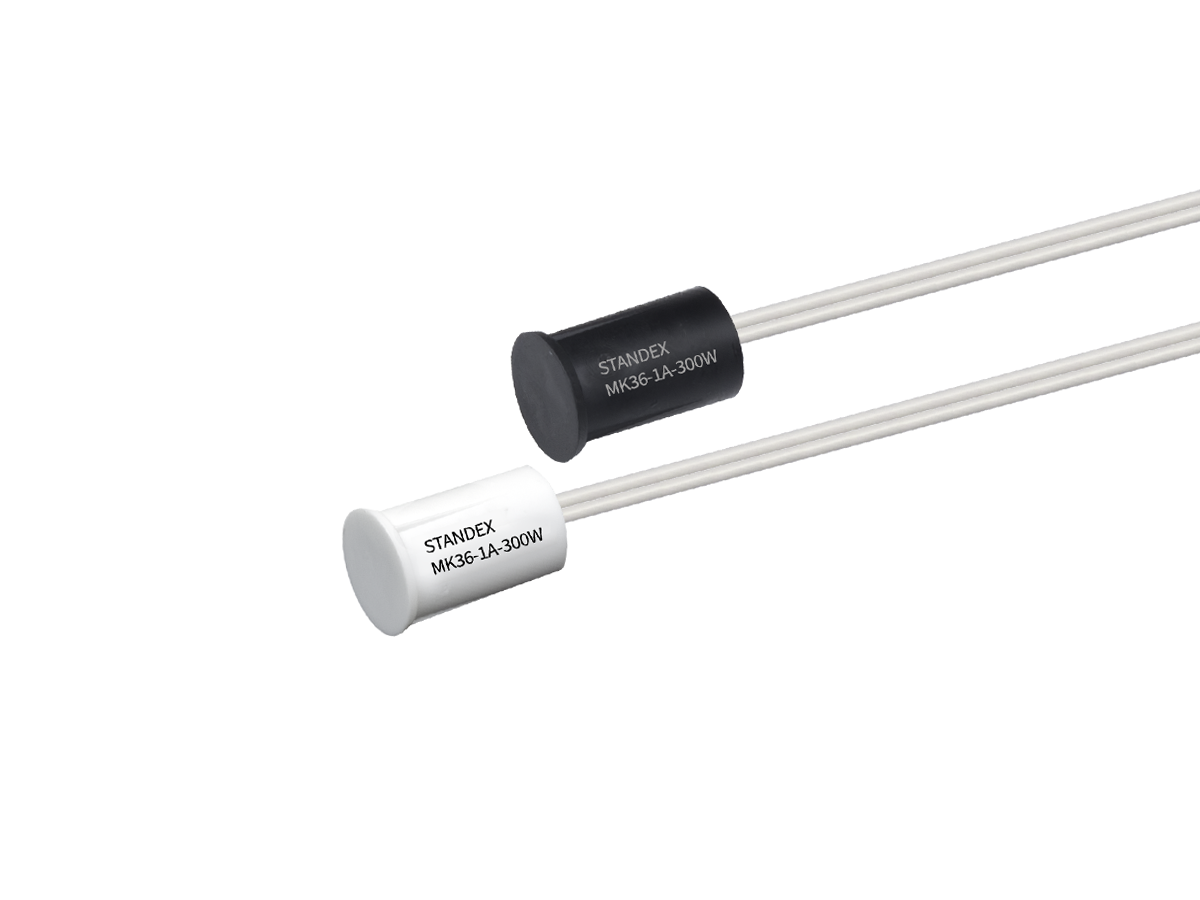

The MK36 Series Reed Sensor is a miniature recessed magnetic sensor designed for installation in a ø3/8” hole, or in a ø3/4” hole when using an adapter. When using an adapter, the sensor is designed for a press-fit installation that utilises crush ribs to retain the sensor in the installation hole. The sensor has a mating magnet. Housings are available in both white and black, along with cable options of a 2-conductor UL-rated cable or a VdS-compliant cable with a sabotage loop.

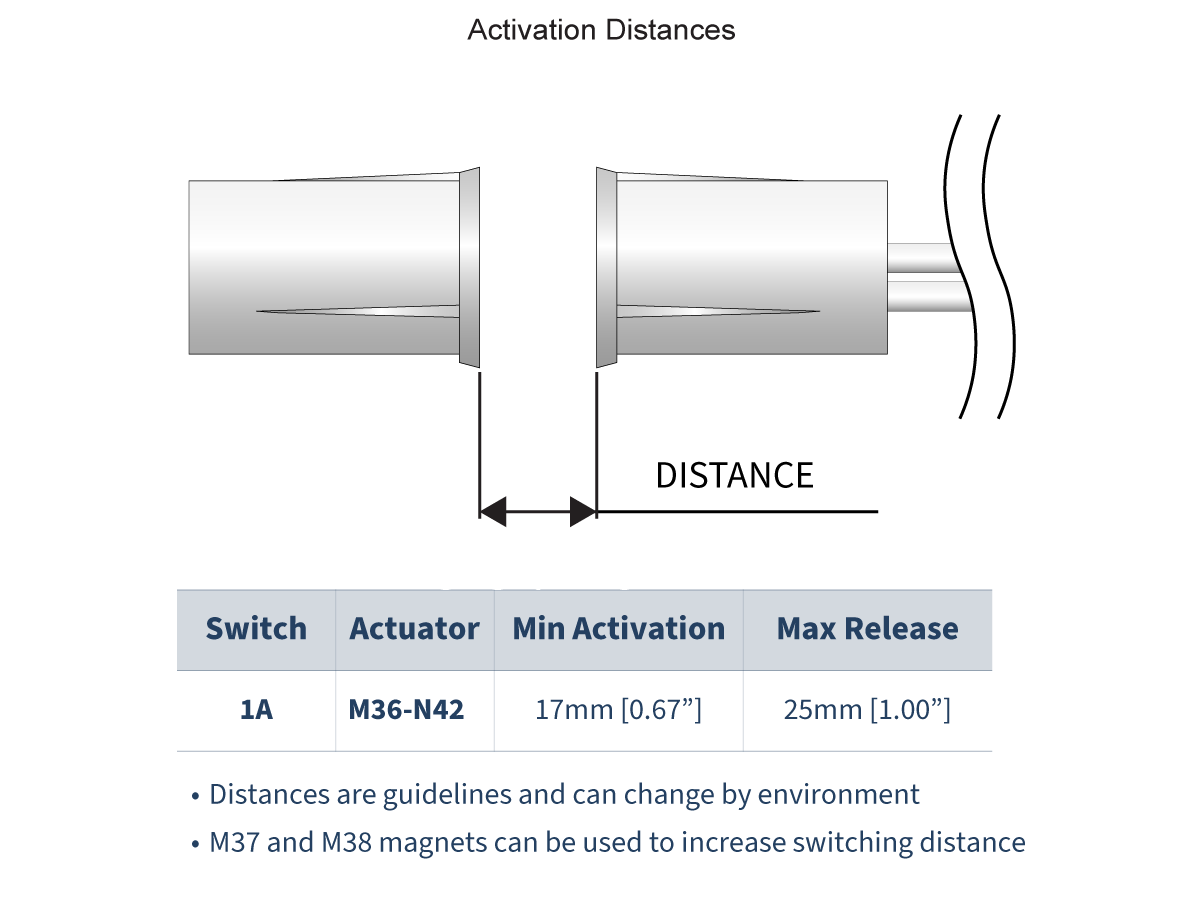

The sensor is commonly paired with the mating M36 magnet, or can be paired with an M37 or M38 magnet for larger switching distances.
- Normally Open Sensor Logic
- 3 Watt / 30 Volts / 0.2 Amp

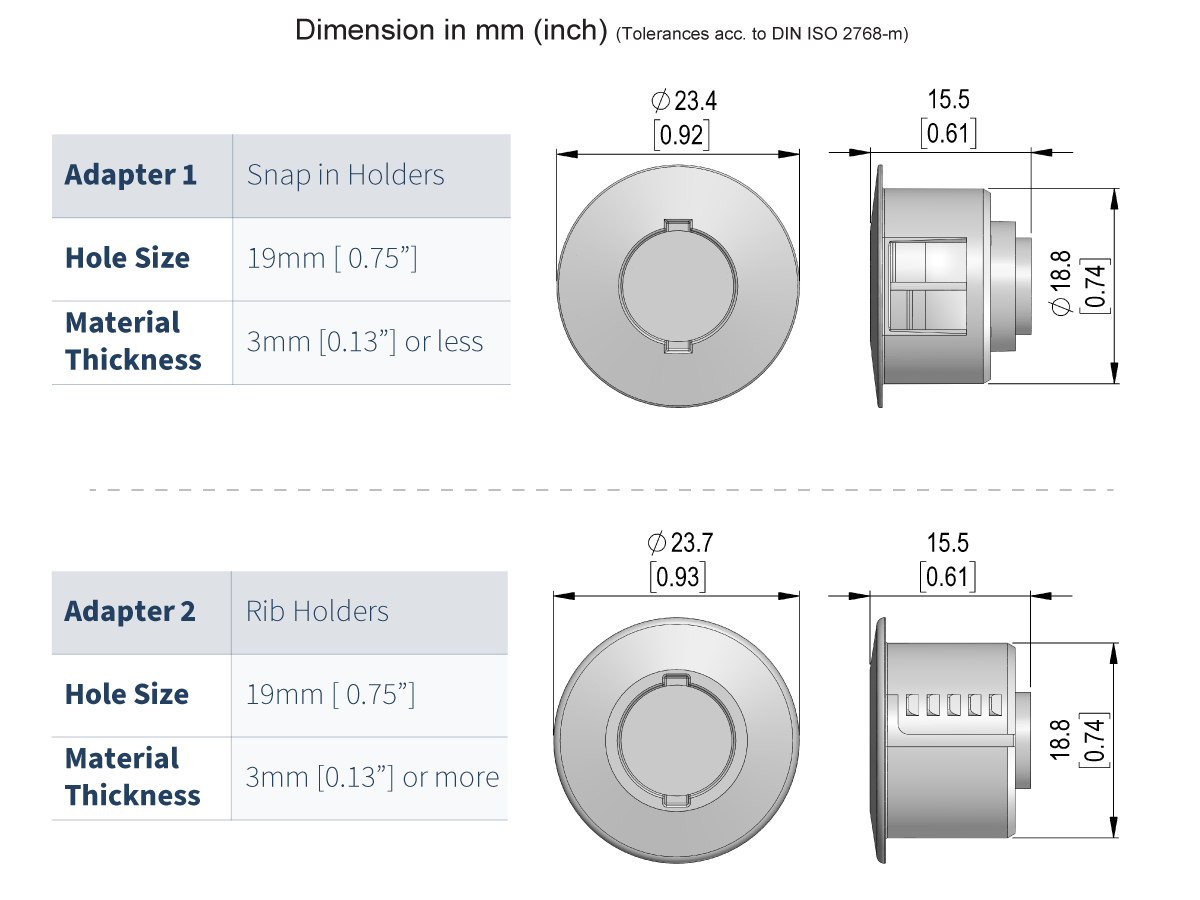

- Adapter Options Available When Installing in Ferromagnetic Material
- Customisation Options: Cable Harness Length, Connector Options
- Sensor commonly paired with mating M36 magnet
- Sensor can be paired with an M37, M38 magnet for larger switching distances
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-20 AT |
| Rated Power Max. | 3W/30VDC/0.2A |
- Security panels and machine controls
- Building Automation and Security
- Home Appliances
- Limit sensing
