MK37 Series Reed Sensor

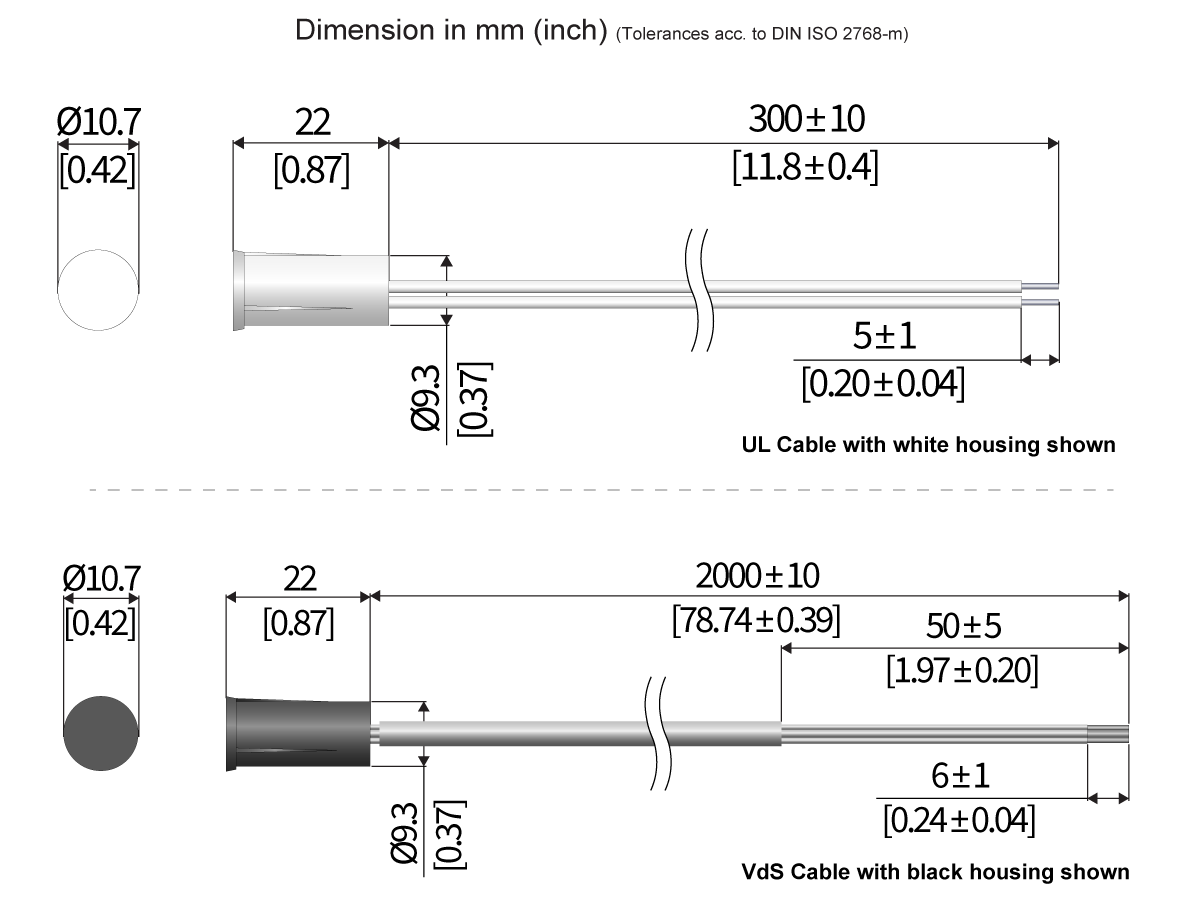

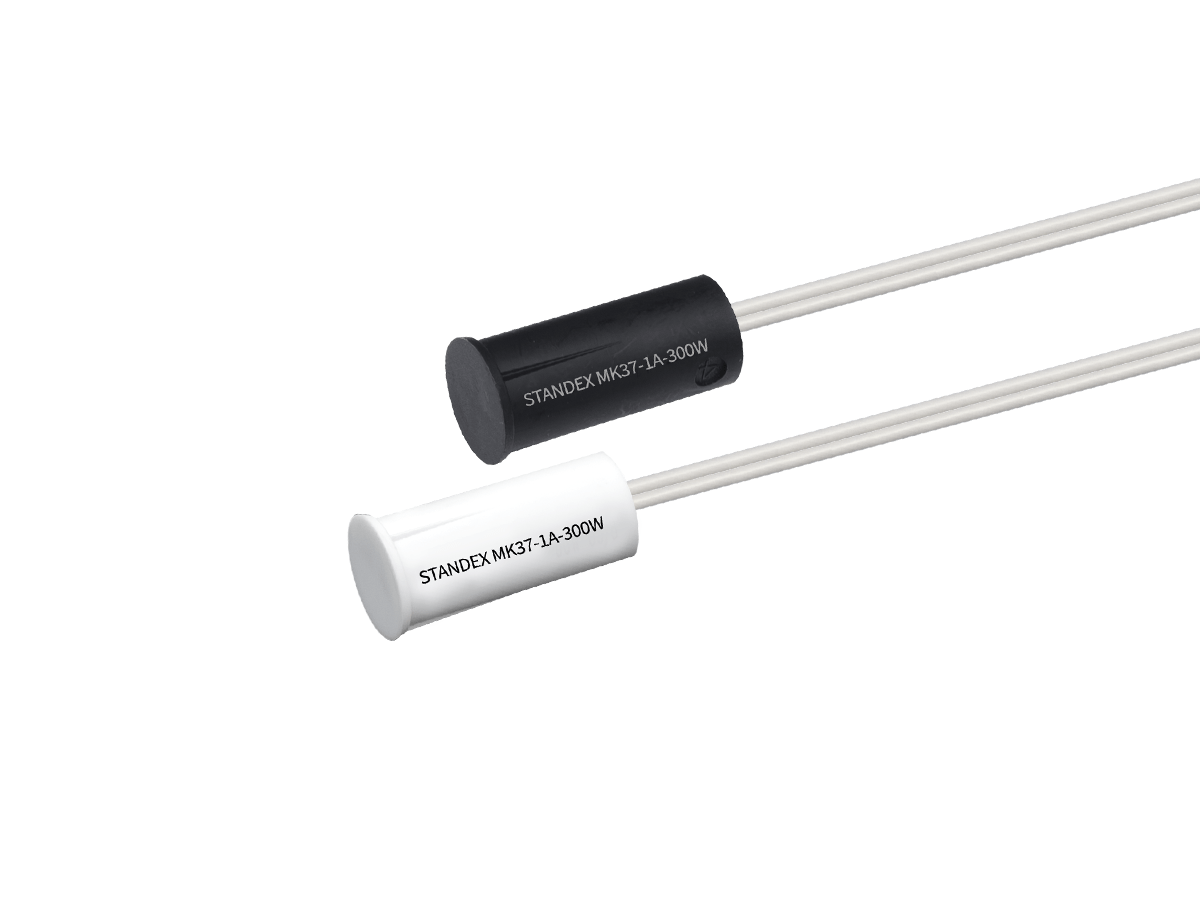

The MK37 Series Reed Sensor is a recessed magnetic sensor that is designed for installation in a ø3/8” hole or in a ø3/4” hole when using an adapter. The sensor is designed for a press fit installation that utilises crush ribs to retain the sensor in the installation hole as well as a mating magnet to match. Housings are available in both white and black along with cable options of a 2 conductor UL rated cable or a VdS compliant cable with a sabotage loop.
Sensor is commonly paired with mating M37 magnet, or can be paired with the M36 magnet for reduced switching distance, or with the M38 magnet for larger switching distances.
- Normally Open and Normally Closed Sensor Logic
- Customise Single Pole Double Throw Logic Available
- Normally Open Power Ratings 10 Watt / 180 Volts / 0.5 Amp
- Normally Closed Power Ratings 3W / 30 Volts / 0.2A
- Adapter Options Available When Installing in Ferromagnetic Material
- Customisation Options: Cable Harness Length, Connector Options
- Sensor commonly paired with mating M37 magnet
- Sensor can be paired with M36 magnet for reduced switching distance
- Sensor can be paired with M38 magnet for larger switching distances
| Operating Range | 10-20 AT |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/180VDC/0.5A |
| Contact Form | 1B (SPST) Normally Closed (N.C.) |
| Rated Power Max. | 3W/30VDC/0.2A |
- Security panels and machine controls
- Building Automation and Security
- Home Appliances
- Limit sensing
