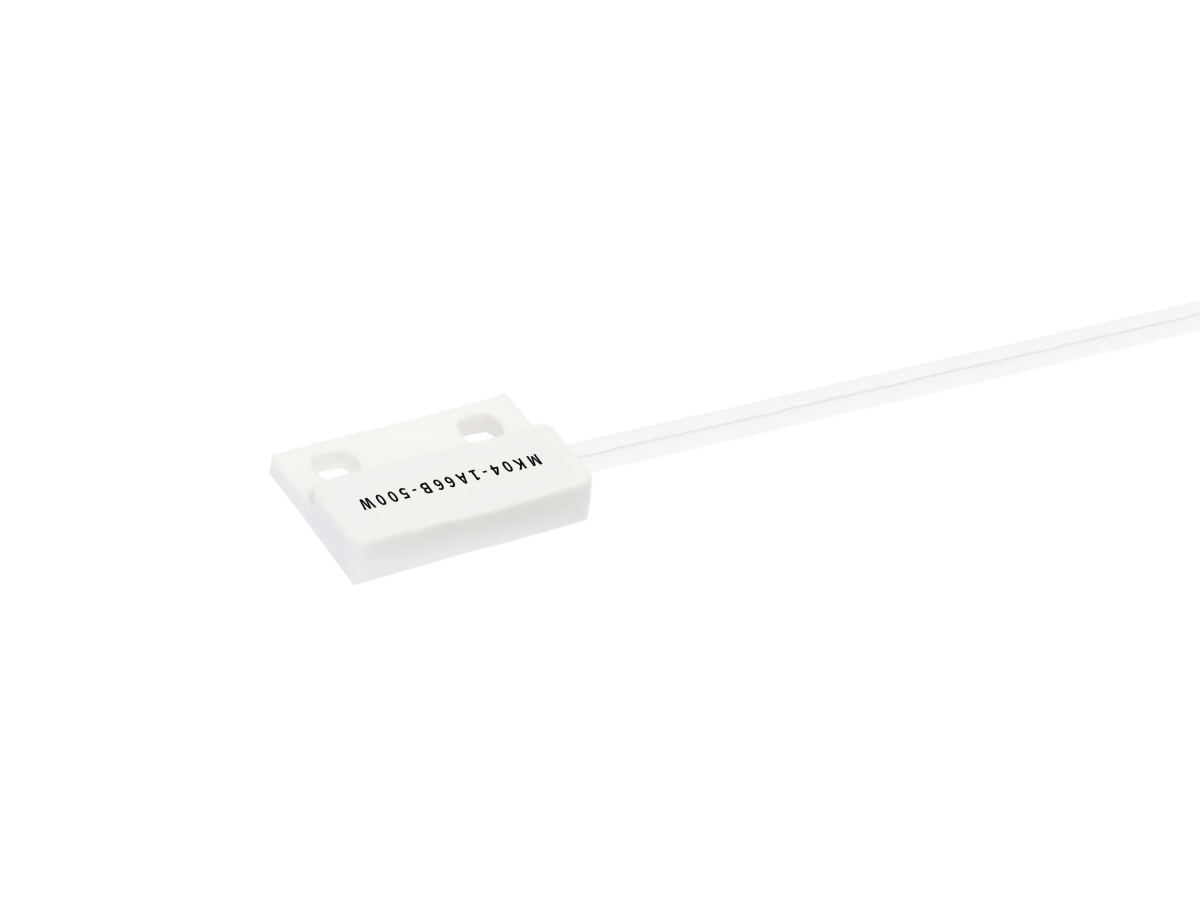

MK04 Series Reed Sensor
The MK04 Series Reed Sensor offers a best-value solution for position, proximity, motion, level, and end-limit sensing. Housed in a rectangular screw-fastened flange mount with cable terminals, it’s built for durability and flexibility across industrial, security, and appliance applications.
Technical Highlights:
- Mounting Style: Screw flange

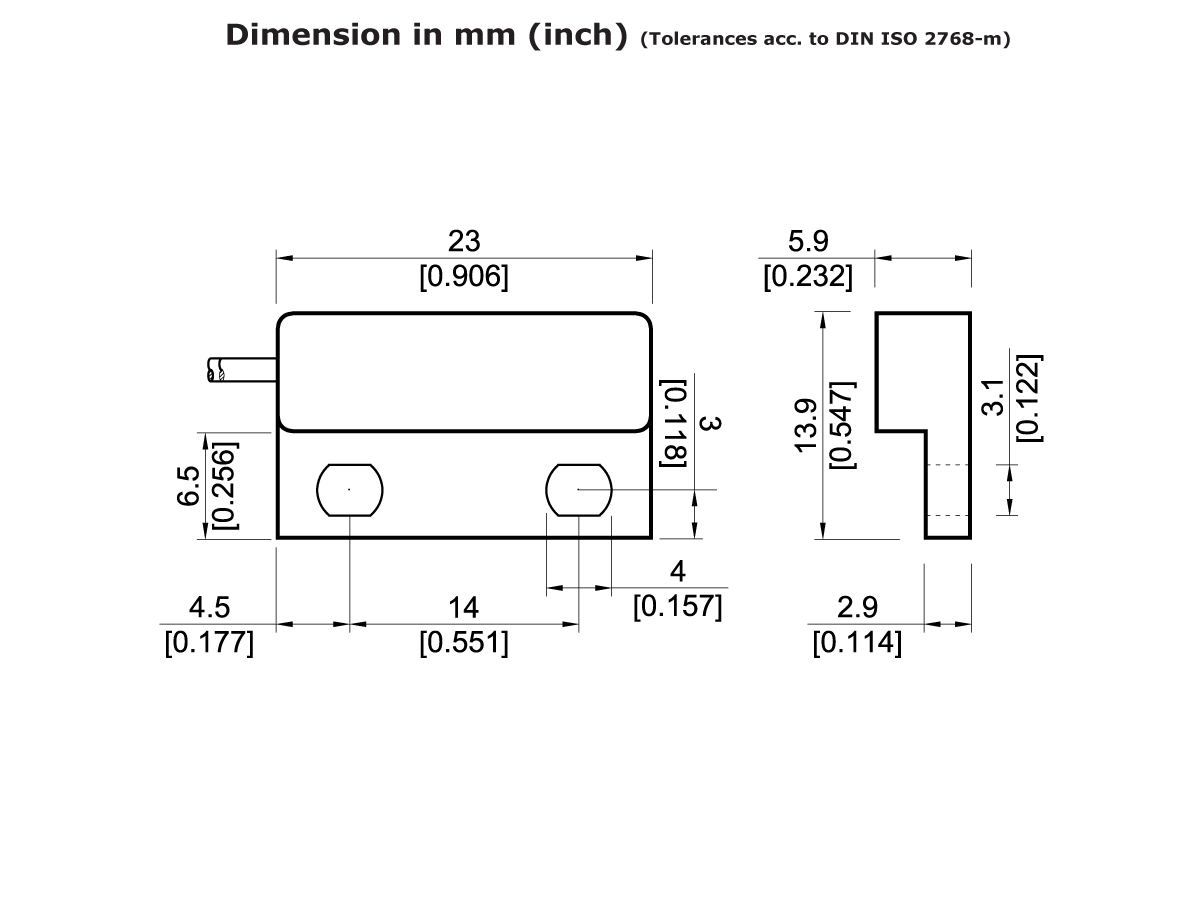

- Body Dimensions: 0.910″ L × 0.550″ W × 0.230″ H (23.00mm × 13.90mm × 5.90mm)
- Termination Style: Cable (flat or round)
- Switching Voltage: Up to 500V depending on model
- Cable Lengths: Available from 20.59″ to 197.76″
- Multiple Contact Configurations: Available in SPST Normally Open (1A), SPST Normally Closed (1B), and SPDT Changeover (1C) formats.
- Wide Operating Range: Sensitivity from 10 to 60 AT for versatile magnetic actuation.
- High Power Capability: Rated up to 10W, 400VDC, and 0.5A for dependable switching.
- Customizable Options: Choose internal switch type, cable length (up to 197.76″), and termination style (flat or round cable).
- UL Approved: Certified for safety and performance with IP-rated protection.
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Industrial automation
- Security systems
- White goods and appliances
- Motion and level detection
