MK11 Plastic Series Reed Sensor
The MK11 Plastic Series is a versatile, cylindrically housed reed sensor designed for M8 adjustable thread mounting, offering flexible installation and precise sensing alignment. Built for high-voltage and industrial environments, it features a rugged plastic housing with cable terminals and supports a wide range of sensing applications.
The MK11 Plastic Series combines high-voltage capability with installation flexibility, making it a reliable choice for OEMs and engineers working in demanding environments.

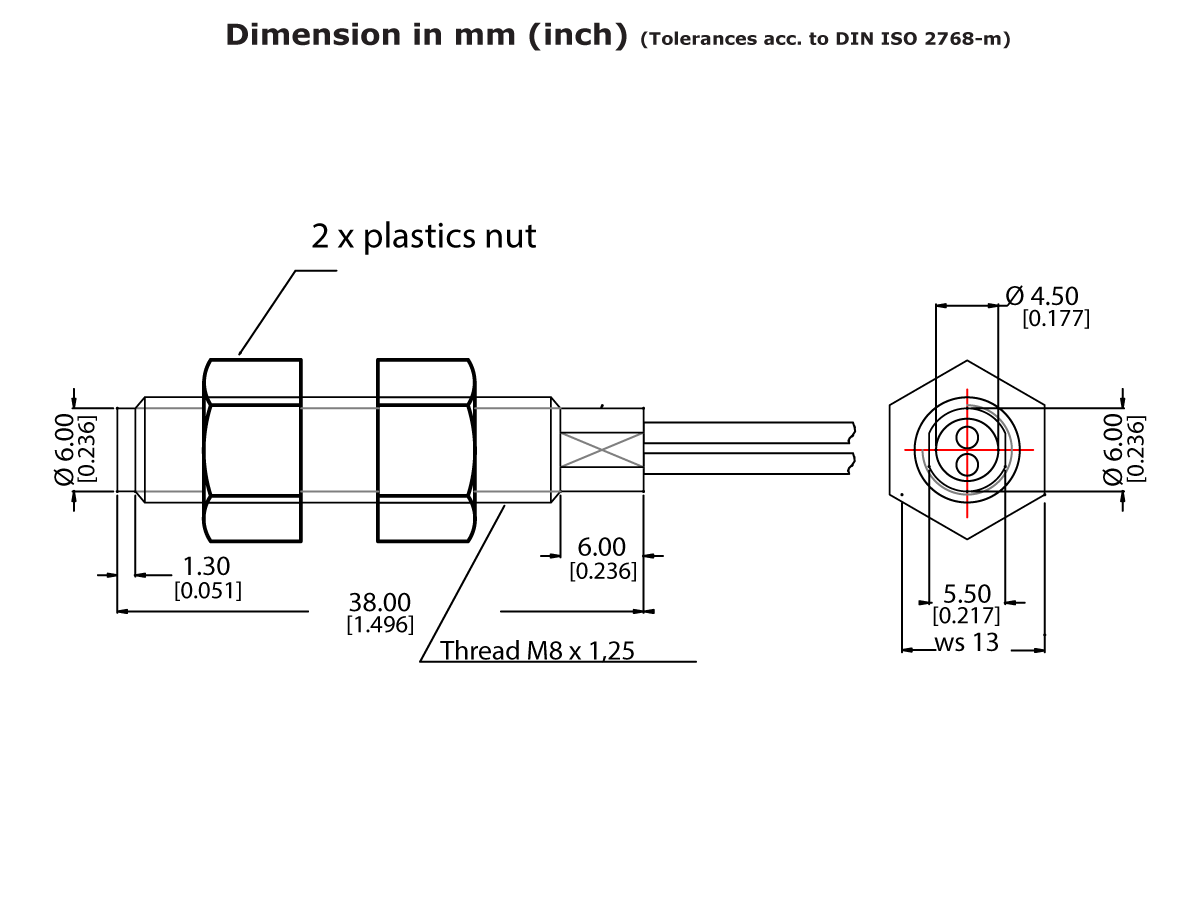

- M8 thread mount for adjustable positioning
- Plastic cylindrical housing with cable terminals
- Optional high-voltage switch configurations
- UL-approved and IP67-rated for durability
- Custom cable types, lengths, and terminations available
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 100W/1000VDC/1A |
- High-voltage switching
- Industrial automation
- Security systems
- White goods and appliances
- Position, level, and end-limit sensing
