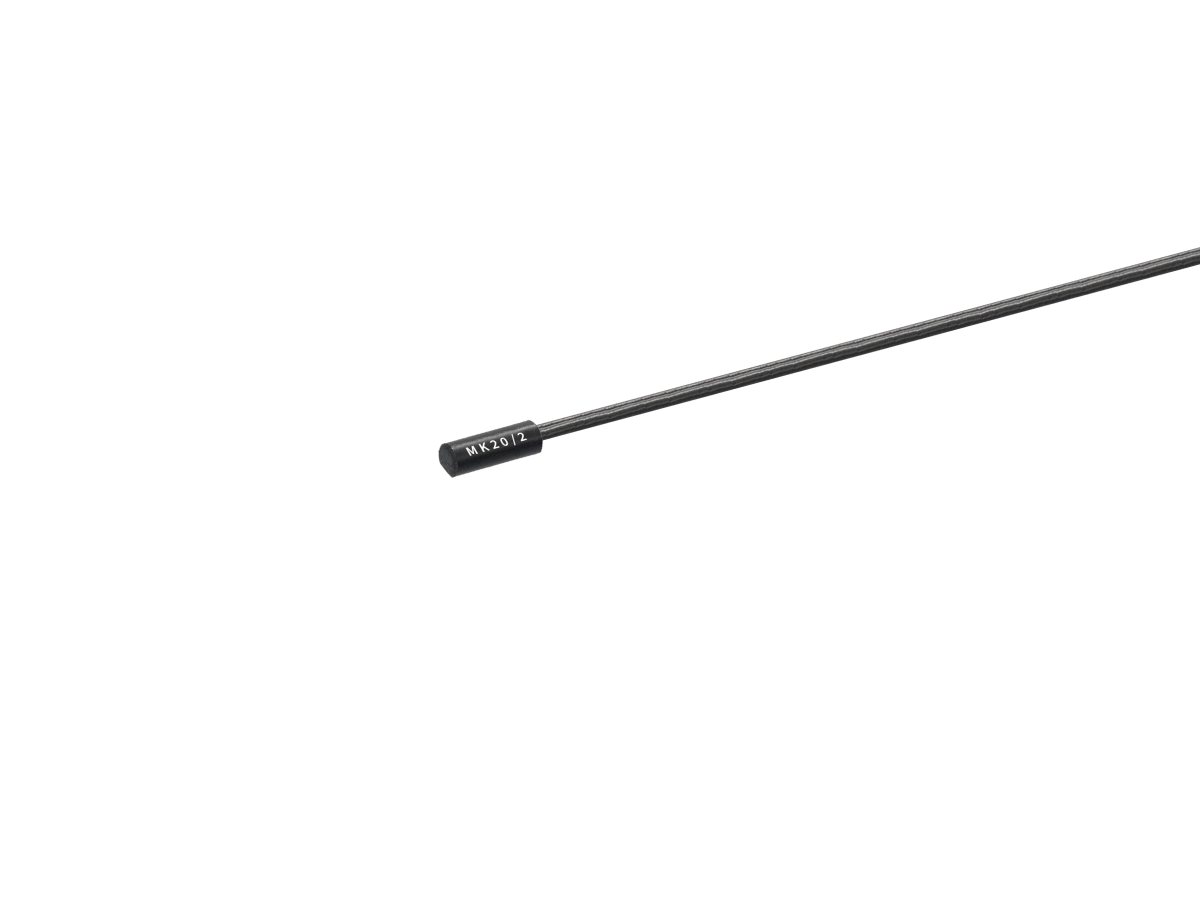

MK20/2 Series Reed Sensor

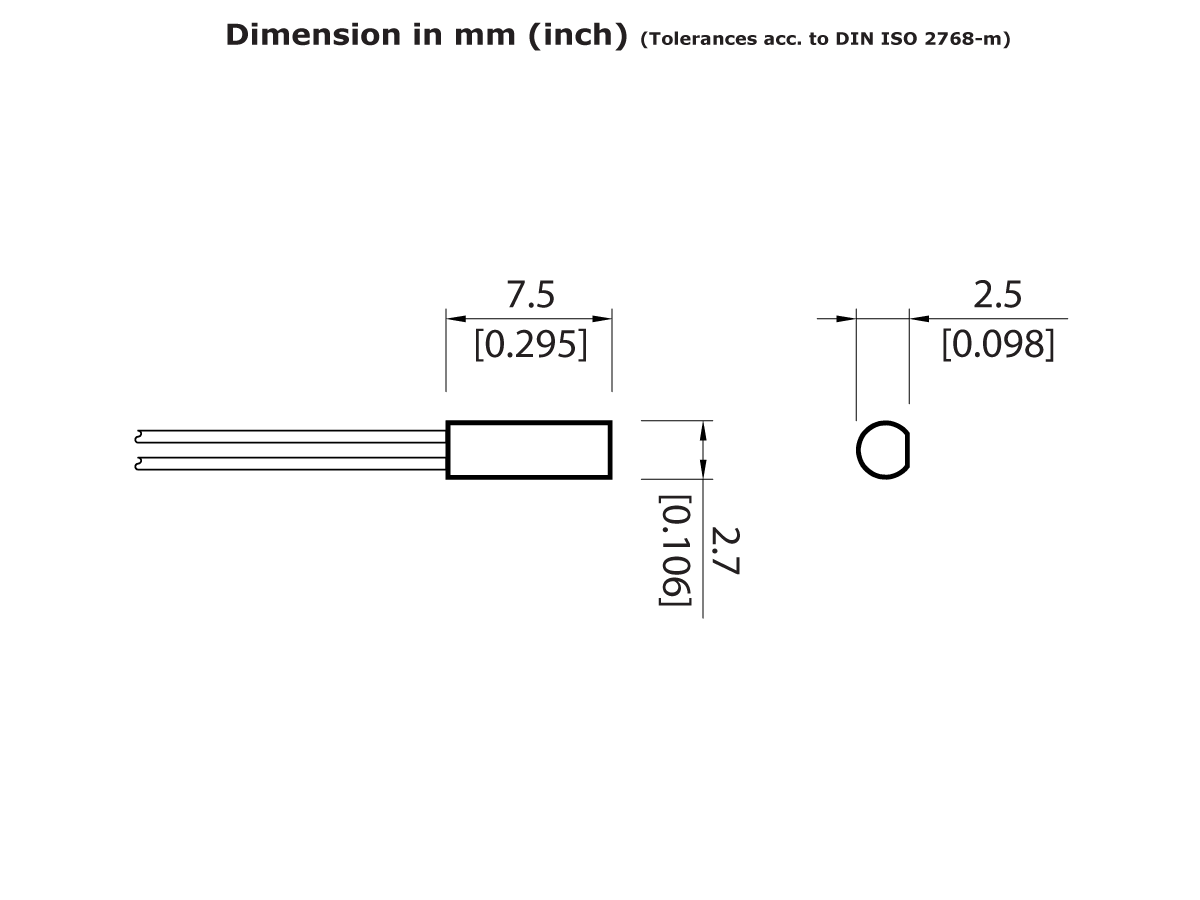

The MK20/2 Series is an ultraminiature cylindrical reed sensor designed for panel mounting in extremely compact applications. With a 2.7mm diameter housing, it offers precise magnetic sensing for industrial, security, and appliance environments. Its small footprint and flexible cable configurations make it ideal for position, level, and end-limit detection in space-constrained designs.
The MK20/2 Series delivers high-precision sensing in an ultracompact form factor, making it a trusted solution for OEMs and engineers designing in miniature or low-voltage environments.
- Ultraminiature 2.7mm cylindrical housing for tight spaces
- Panel-mount design with cable terminals
- Multiple cable lengths, terminations, and magnetic sensitivities available
- UL-approved configurations
- Compact and discreet integration
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-30 AT |
| Rated Power Max. | 3W/30VDC/0.25A |
- Door and window monitoring
- Water level detection (with magnetic floats)
- Position and proximity sensing
- White goods and household appliances
- Security systems
- Miniature industrial devices
